2024 NEW Baofeng UV-17 Two Way Radio Walkie Talkie Long Range Ham 10W UHF VHF 1000 channels

2024 NEW Baofeng UV-17 Two Way Radio Walkie Talkie Long Range Ham 10W UHF VHF 1000 channels

2024 NEW Baofeng UV-17 Long Range Ham 10W UHF VHF 1000 channels Two Way Radio Walkie Talkie

1. UV dual section dual guard and dual standby, 1.77 "color large screen, full keyboard, large key design, and fully open human-computer operation interface, with loud voice and better sound quality, are ideal for amateurs.

2.10 area (1000 channels) storage

3. English menu display and channel broadcast

4. FM broadcasting (frequency range 65-108MHz)

5 Call privacy function to protect your communication privacy

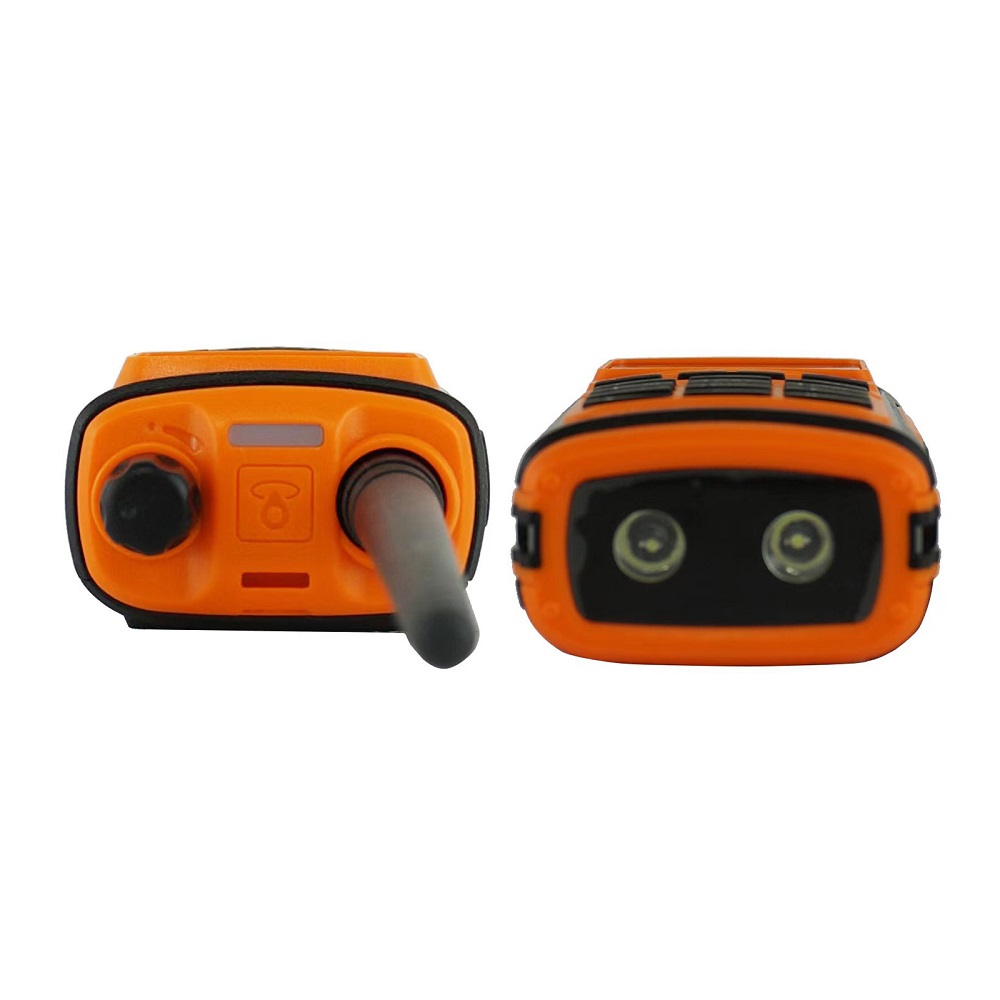

6. Double lamp flashlight design, audible and visual alarm, escort you

7. NOAA weather channel receiving and scanning (built-in U.S. and Canadian weather frequencies)

specifications:

channel capacity:1000

channel spacing:25KHZ/12.5KHZ

input voltage:DC 7.4V

battery:5% TX,5% RX,90% standby:10 hours@5W

CURRENT DRAIN:stand-by:45mA;receive:200mA;transmit:high power 11.5A,low power 1A

operating temperature:-10℃~60℃

antenna impedance:50Ω

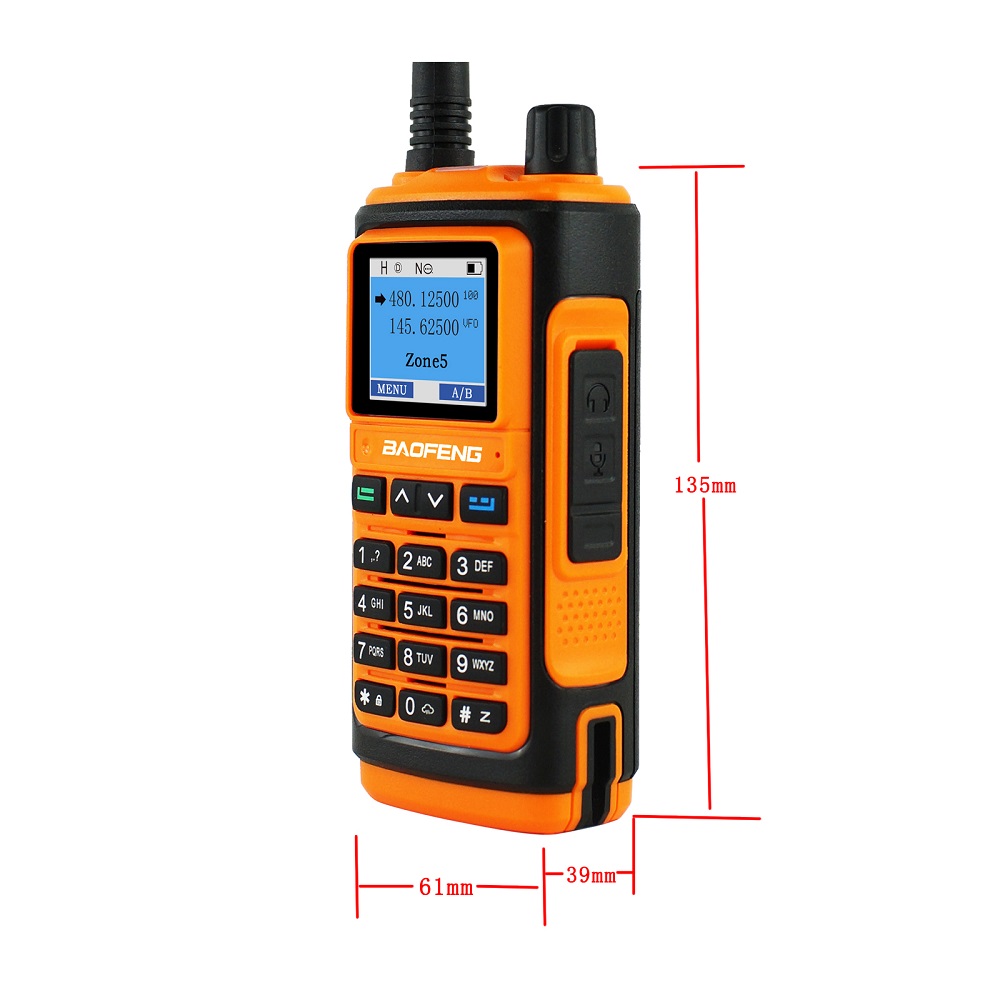

radio dimensions:135*61*39mm(not including antenna)

radio weight:260g(with LI-ON battery)

transmitter:

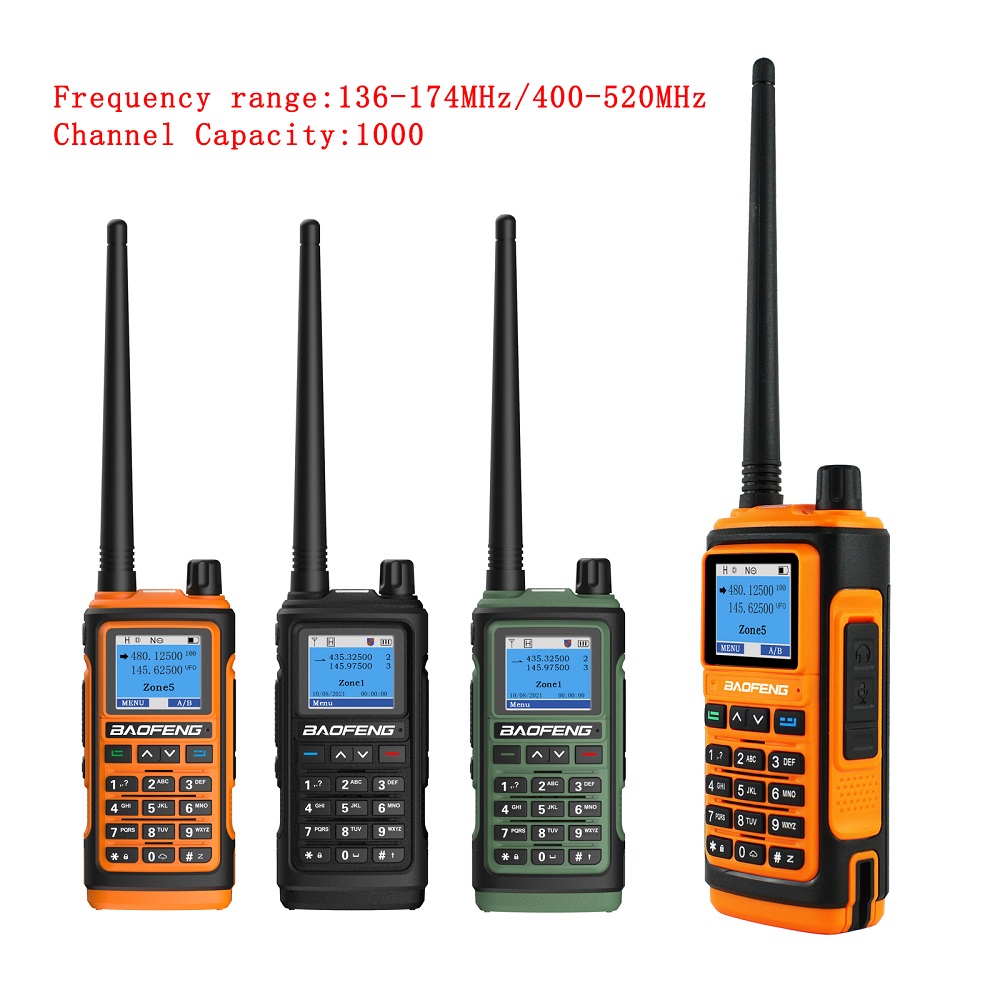

frequency range(TX):136-174MHz,400-520MHz

RF output power: MAX 1.6 W

modulation:16K0F3E/11K0F3E

spurious and harmonics:-36dBm<1GHz,-30dBm>1GHz

frequency stability:±2.5ppm

andio distortion:≤5%

FM hum&noise:40dB

receiver:

frequency range:136-174MHz,400-520MHz

sensitivity:12dB sinad:-120dBm

adjacent channel selectivity:-60dBm

intermodulation and rejection:-70dBm

rated audio power output:0.75W@16Ω

rated audio distortion:≤5%
