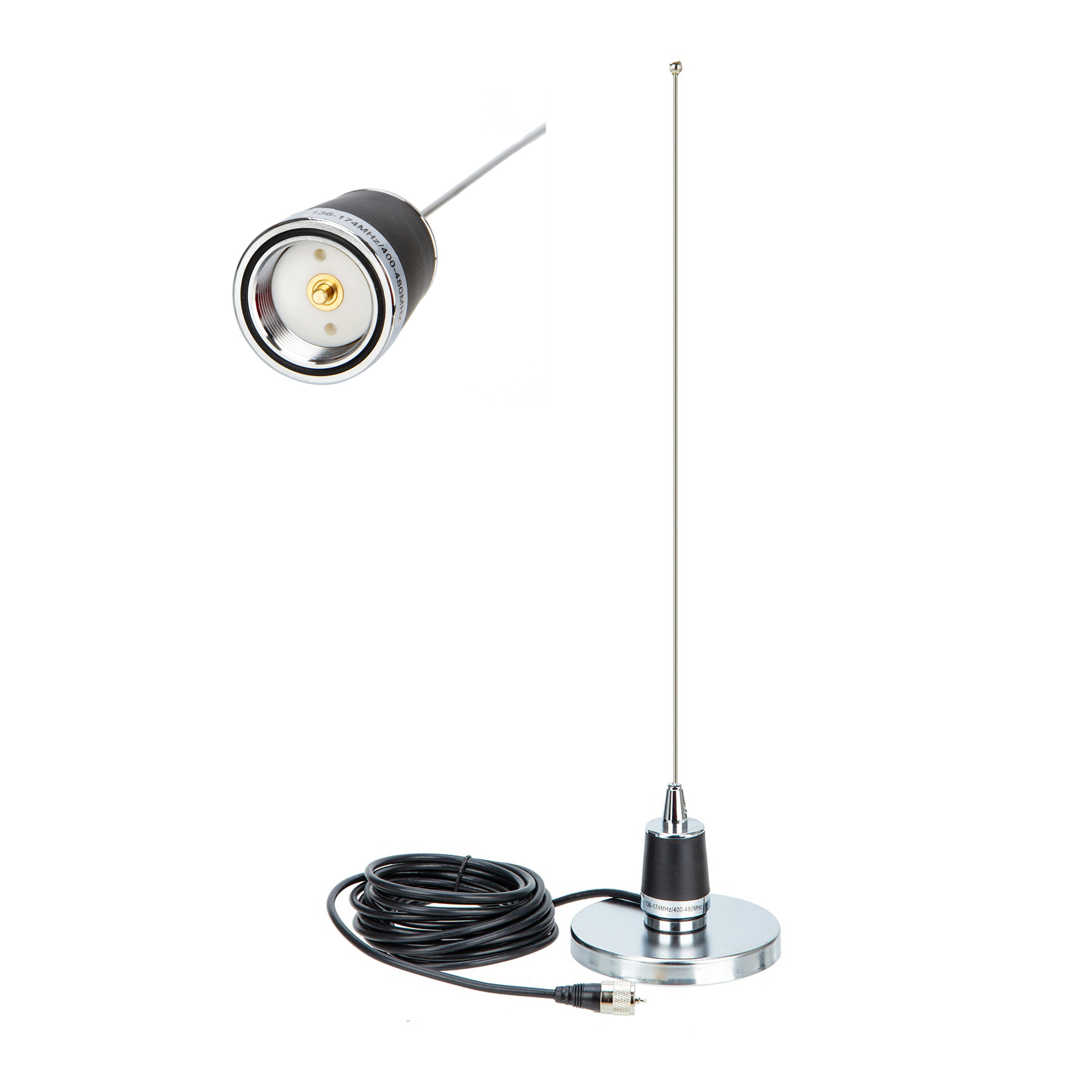

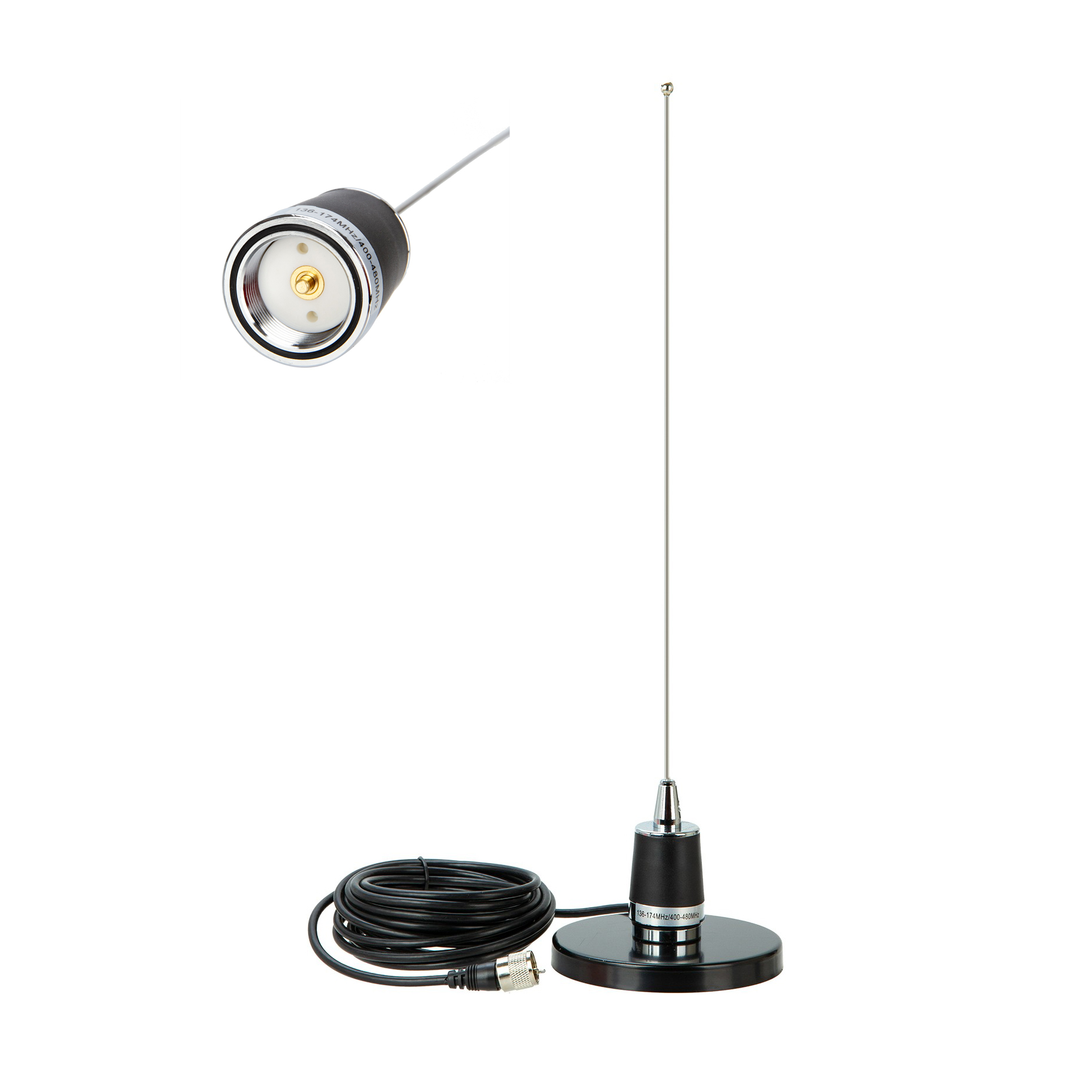

NB-120 12CM NMO Magnetic Mount Base NMO Antenna 5M PL-259 Connector Coaxial RG-58 Cable For QYT TYT Car Mobile Radio

NB-120 12CM NMO Magnetic Mount Base NMO Antenna 5M PL-259 Connector Coaxial RG-58 Cable For QYT TYT Car Mobile Radio

NMO Antenna 5M PL-259 Connector Coaxial RG-58 Cable NB-120 12CM NMO Magnetic Mount Base For QYT TYT Car Mobile Radio

NMO Magnetic Mount Base Specification：

Base connector：NMO

Cable connector：PL259

Cable length：5m RG-58/U Cable

Base Diameter：12cm

NMO Antenna Specification：

Color：Silver

Frequency：VHF&UHF

Max power：150W

V.S.W.R：Less1.5

Impedance：50Ω

Connector：NMO

Gain：2.15/3.5dBi

Antenna Length：51.5cm

VibratorMaterial：Stainless steel

Compatibility:

for YAESU :FT-1802M ,FT-1807,FT-7900R,FT-1900R,FT-2900,FT-2800M,FT-7800R,FT-8800R,...

for Kenwood : TM-271 ,TM-471,TM-281,TM-481,TK760,TK780,TK7160,TK7180,TK7102,TK7150 TK7302U,TK7360,NX700...

for ICOM : IC-2200H,IC-2720H,F121S,F121,F5011,F5021,F5121D,F5061,F1721,F1821,F9511,V8000,V2300H,...

for Vertex: VX2100,VX2200,VX4500,...

for TYT: TH-9800,TH-7800,TH-9000

for BaoFeng: BF-9500..

for WouXun: KG-UV950P,KG-UV920P,...

for BaoJie: BJ-218 BJ-318

for QYT: KT8900,KT-8900R,KT-8900D KT-7900D

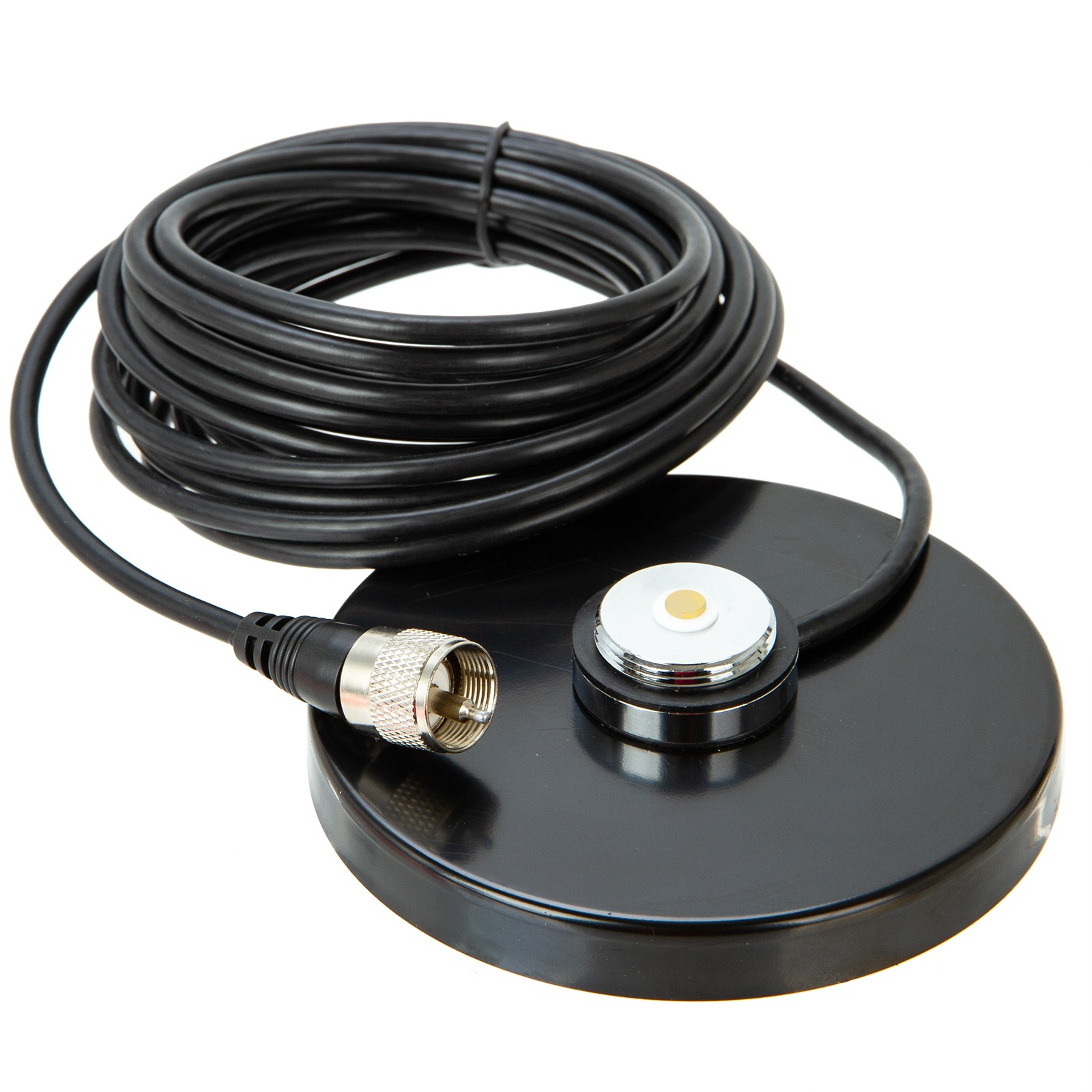

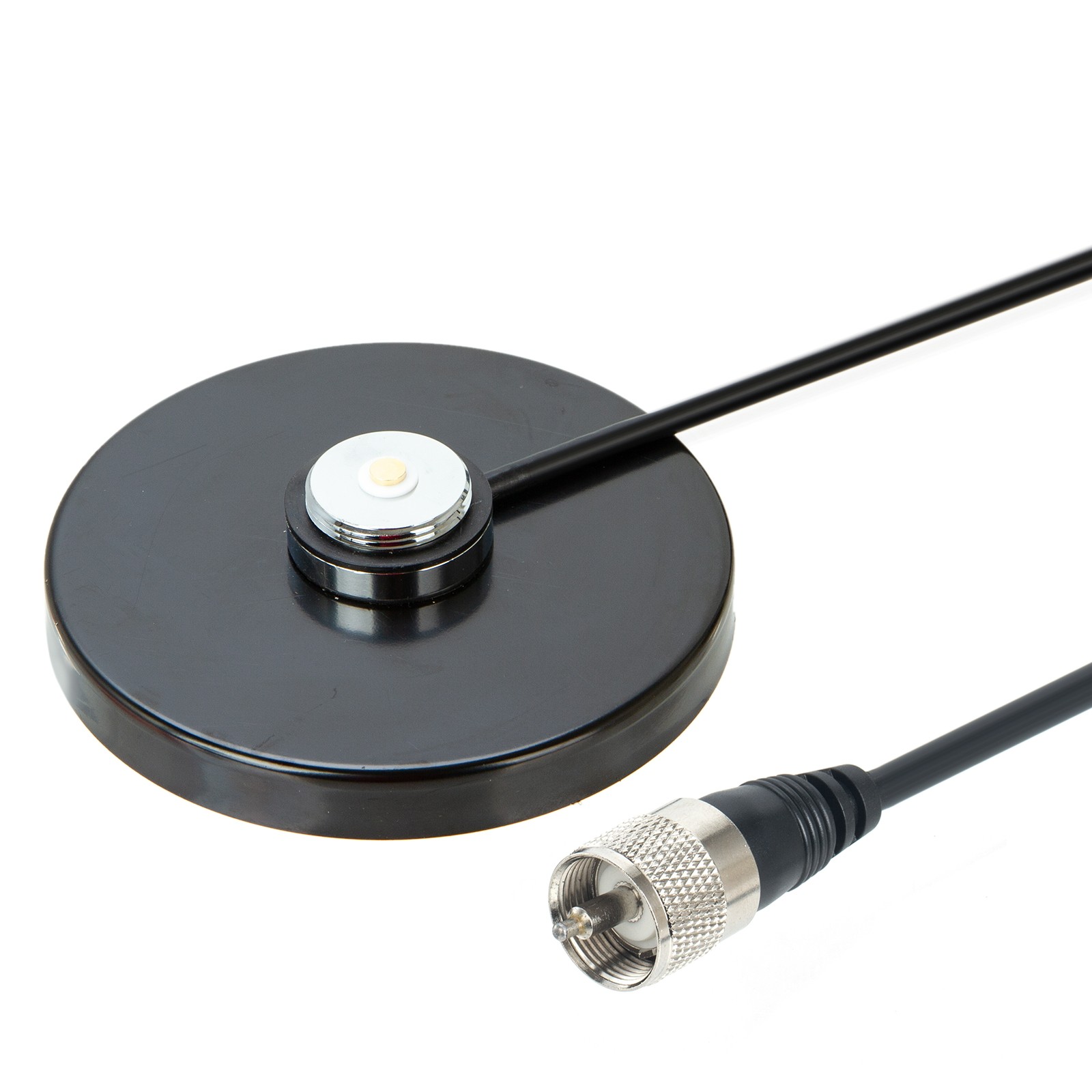

NMO Magnetic Mount Base Description：

1.NMO Connection Style; W/5M(16.4ft) RG58 Coaxial Cable; PL-259 Male Connector,which is suitable for all kind of NMO antenna and SO239 mobile radio.

2.NMO Mount Magnetic base:Height: 30mm/1.18";Magnetic Base Pull Strength:30.8lbs. It is light,portable and strong magnetic,not easy to fall off.

3.There is a rubber mat at the bottom to protect the paint of your beloved car from being stuck by magnets and falling off.

4.The magnetic base is easy to install,plug and work immediately.

5.Never worry about any quality problems. We are confident in the quality of our items.

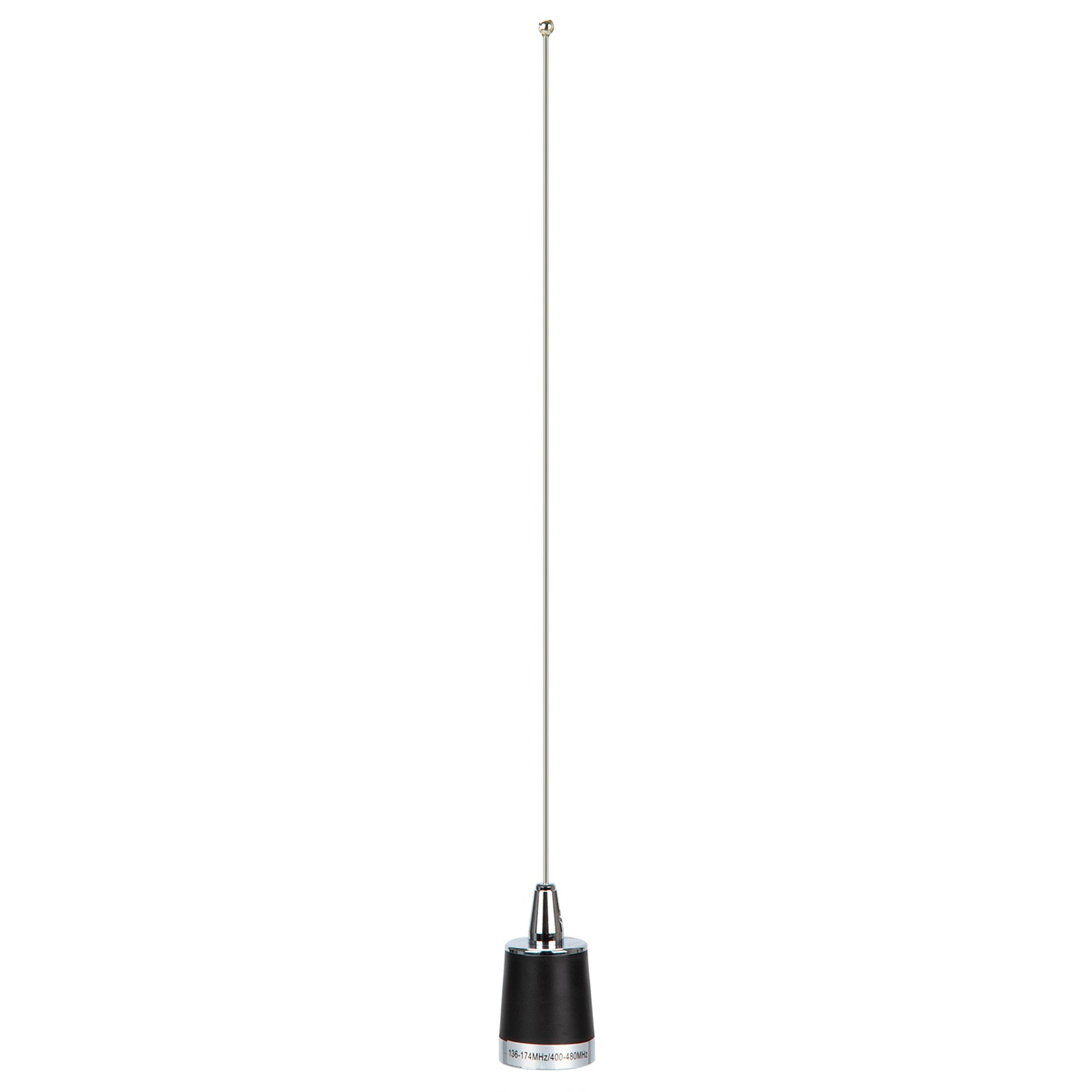

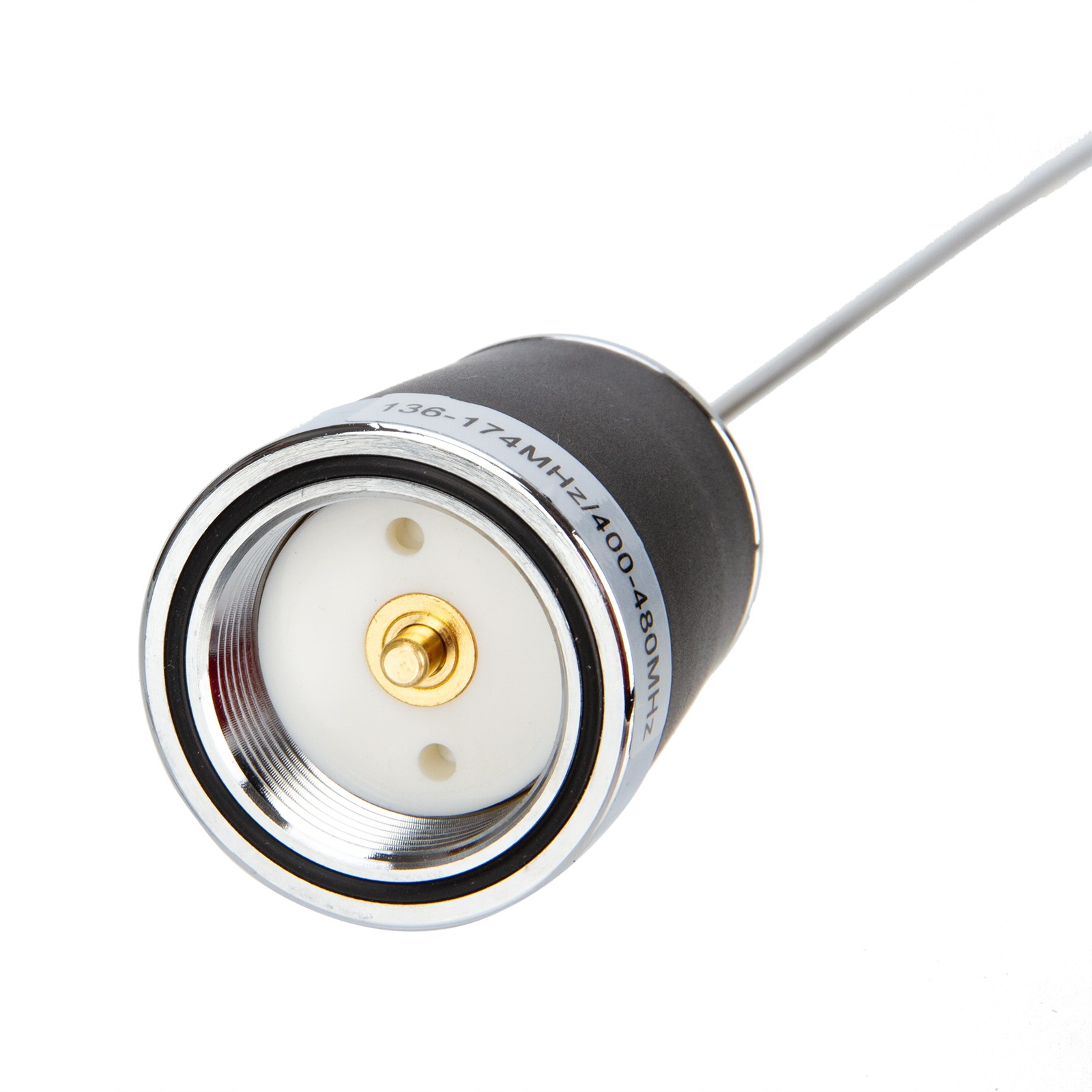

NMO Antenna Description：

1.Mobile Radio Antenna Frequency Range: 144/430MHz (VHF:136-174MHz; UHF:400-470MHz); Electrical Specifications: VSWR: less than or equal to 1.5; Gain: 144MHz (3.0dBi),430MHz(5.0dBi); Max Power Input: 100W; Impedance: 50 ohm; Polarization: Vertical; Radiation: Omni; Mechanical Specifications: Height: 20.3inch/51.5cm; Antenna Connector: NMO

2.NMO mobile transceiver antenna requires no tuning.

3.The whip mast is made of metal. (NMO magnetic base is NOT included)

4.3.0/5.0dBi high gain for better TX and RX.

5.Dual band NMO antennas work for VHF UHF Motorola Kenwood Icom Vertex Blackbox HYT Hytera mobile radios.

package list：

NMO Mount Magnetic Base with 5m Cable and PL259 Connector*1

Dual Band NMO Antenna*1
