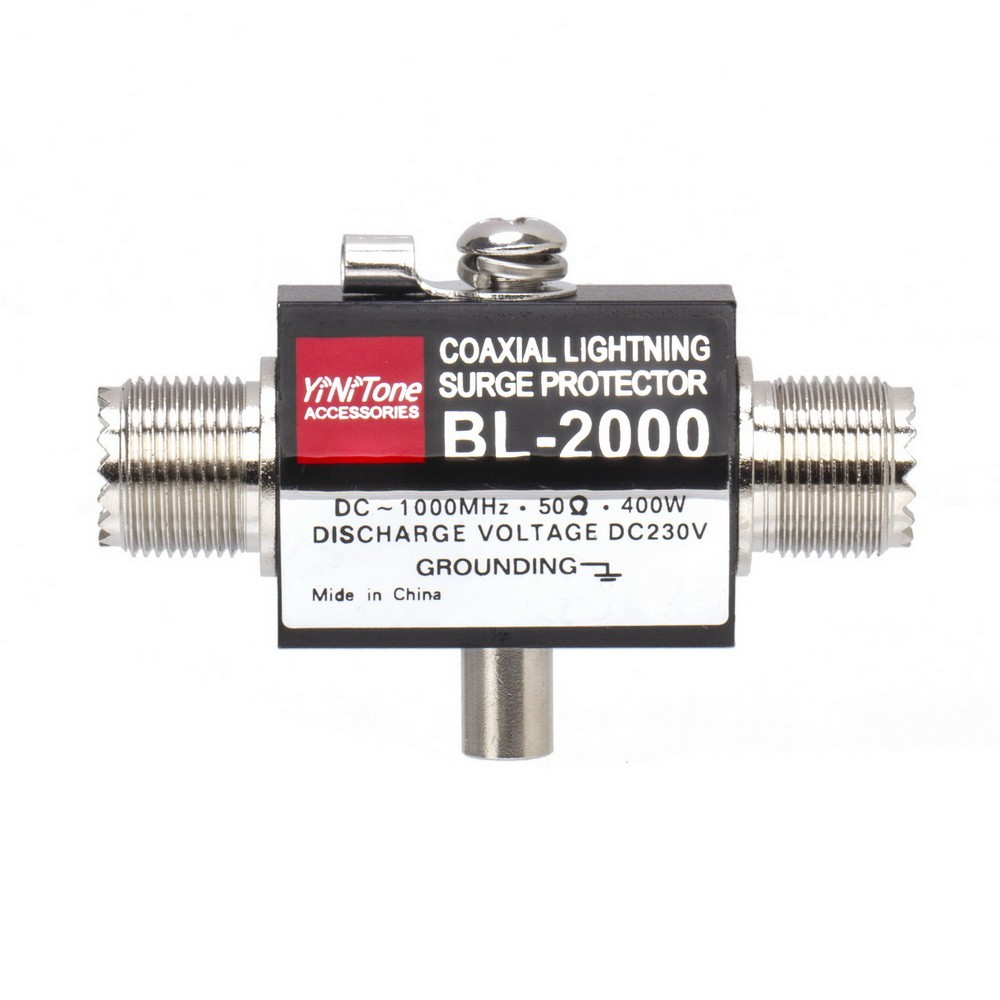

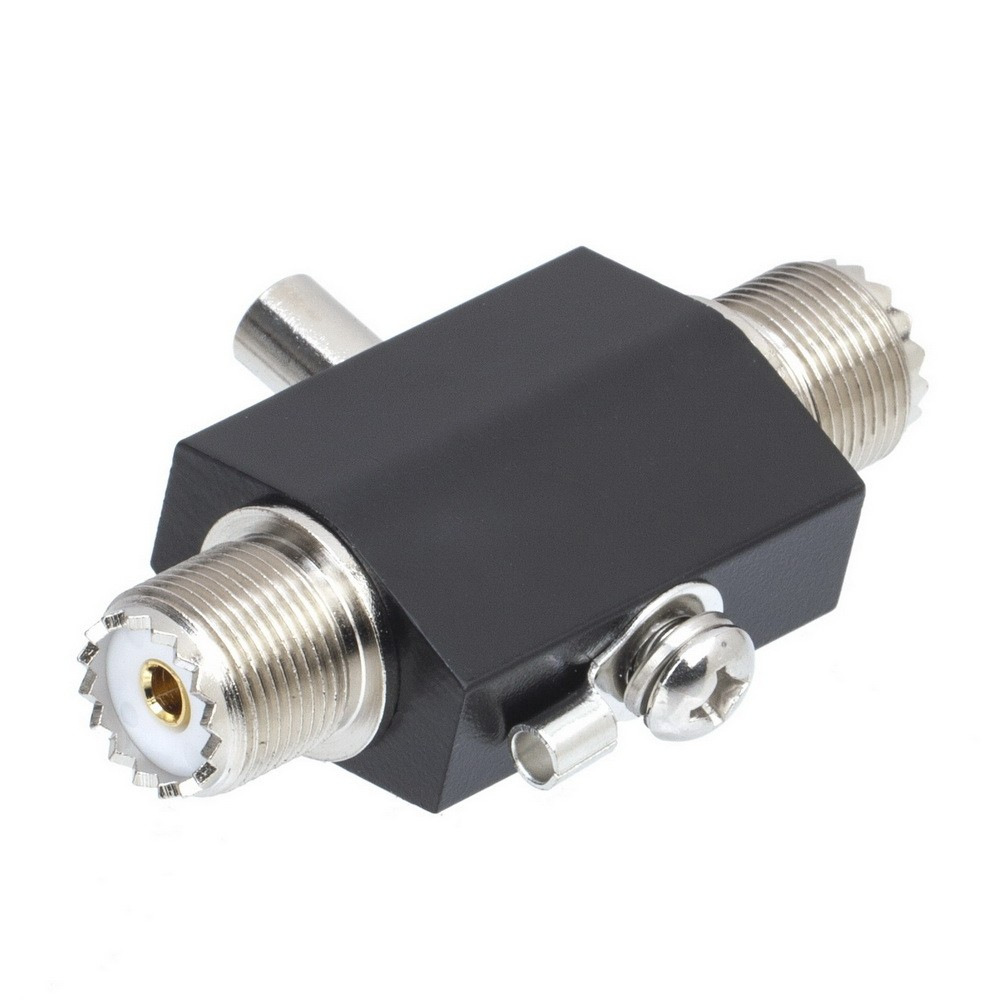

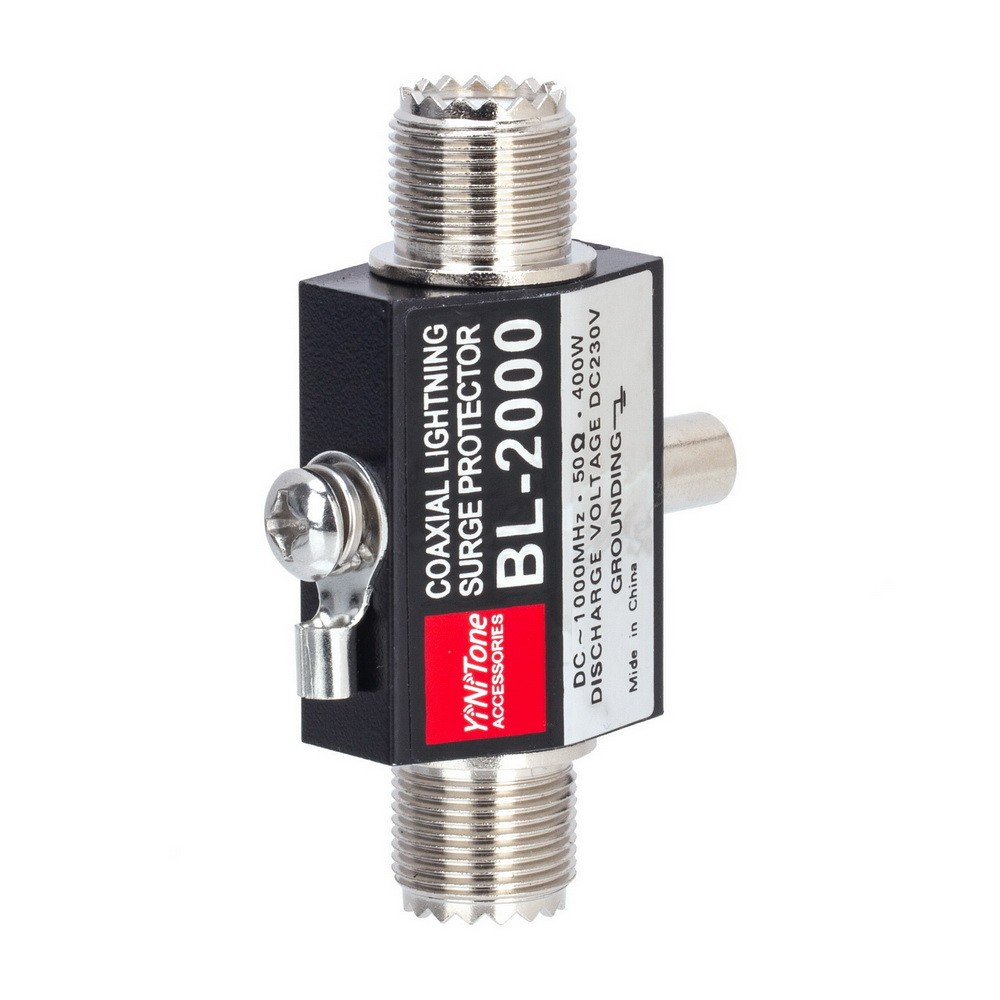

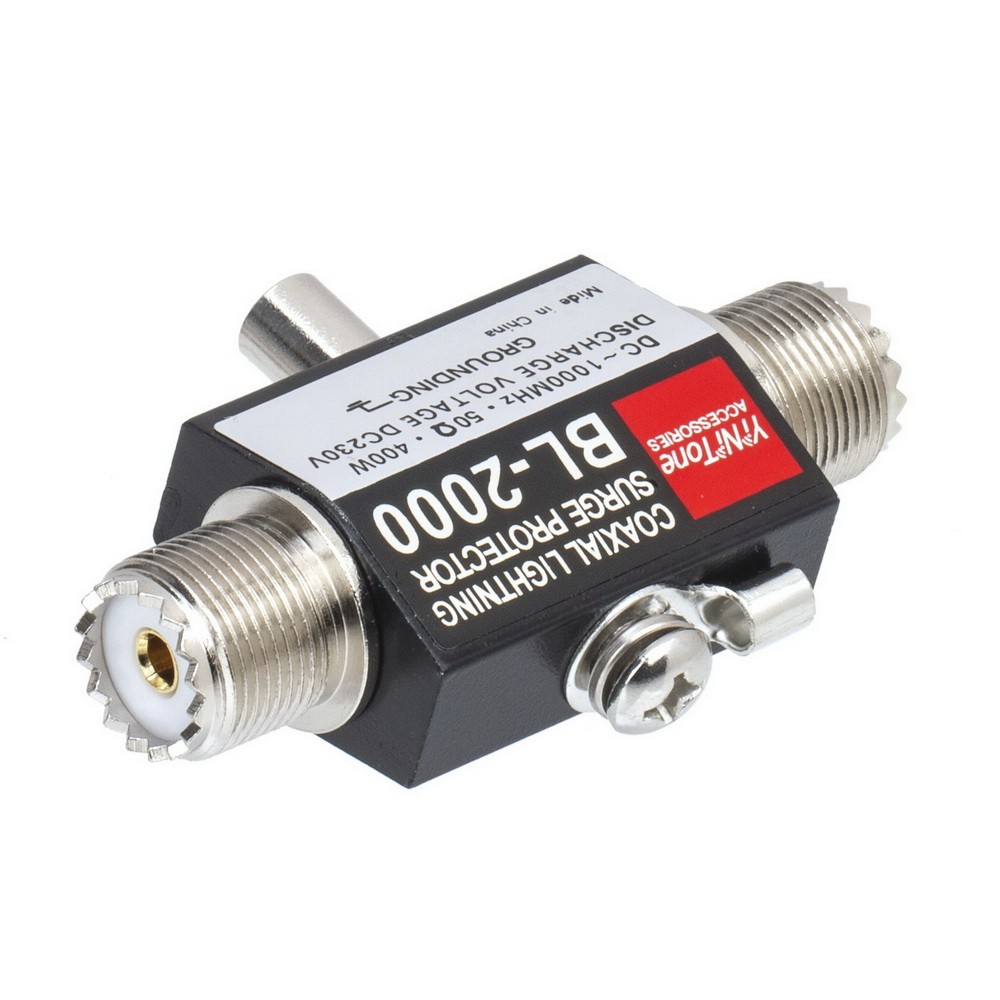

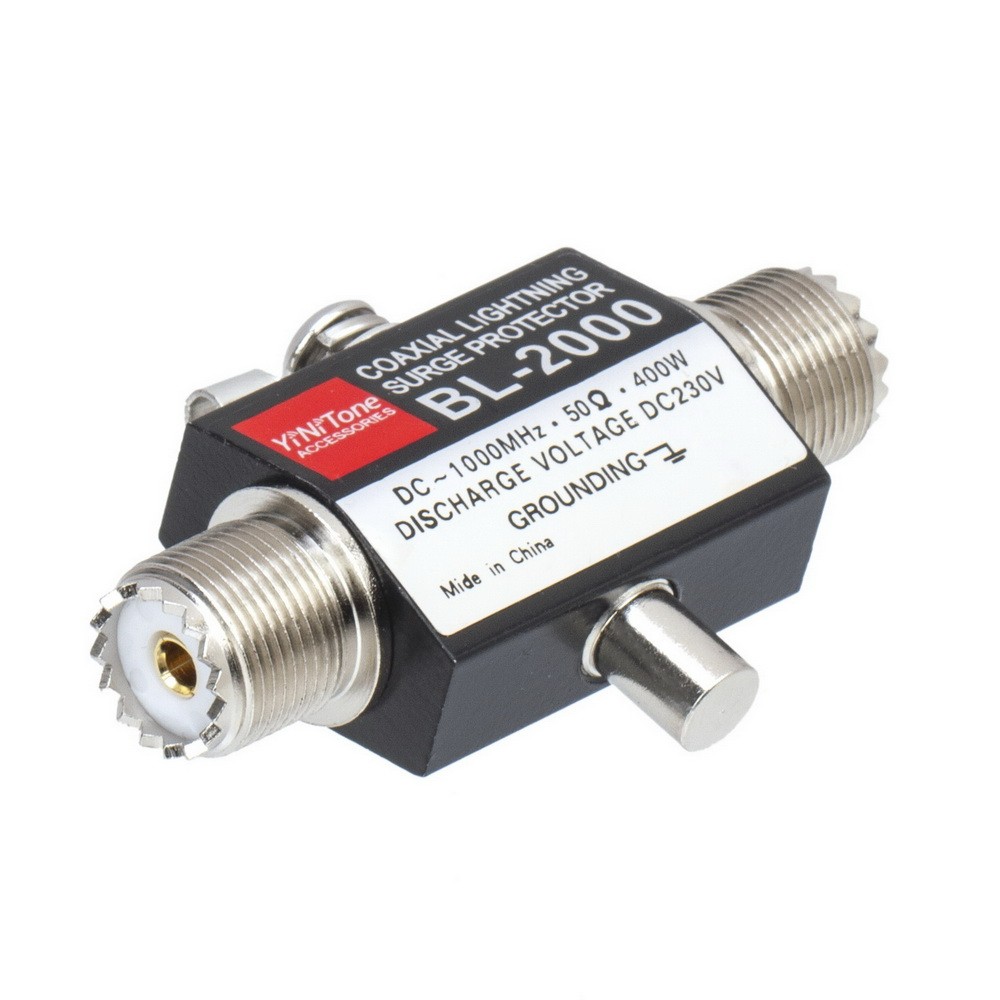

PL259 Female TO PL259 Female 400W 50 Ohm Coaxial Surge Protector/Lightning Arrester BL-2000 DC-1000MHz

PL259 Female TO PL259 Female 400W 50 Ohm Coaxial Surge Protector/Lightning Arrester BL-2000 DC-1000MHz

BL-2000 Coaxial Lightning Arrestor Surge Protector PL259 Female To PL259 Female 400W 50 Ohm

Feature:

1.Comprehensive Protection: Absorbs and grounds lightning surges from antennas on top of buildings, providing complete protection for transceivers, receivers, etc.

2.Safety Guarantee: Designed with high safety in mind, the built in inflatable lightning arrester element discharges and grounds the surge when the surge voltage exceeds a specified level.

3.Convenient and Practical: Surge discharge and recovery action can be repeated as needed. If the lightning arrester components are damaged, they can be easily replaced with new components.

4.Superior Performance: The coaxial structure of the lightning surge protector ensures excellent high frequency characteristics, wide bandwidth, low loss and VSWR.

5.Easy Installation: The coaxial lightning surge arrester adopts 1/4 wavelength short circuit principle, good lightning protection. Simple structure, sturdy and easy to install.

Specification:

Item Type: Coaxial Lightning Arrestor

Material: Iron

Model: BL-2000

Connector: PL259 male to PL259 Female

Frequency Range: DC~1000MHz

Voltage VSWR: ≤1.1

Peak Power: 400W

Impedance: 50 Ohm

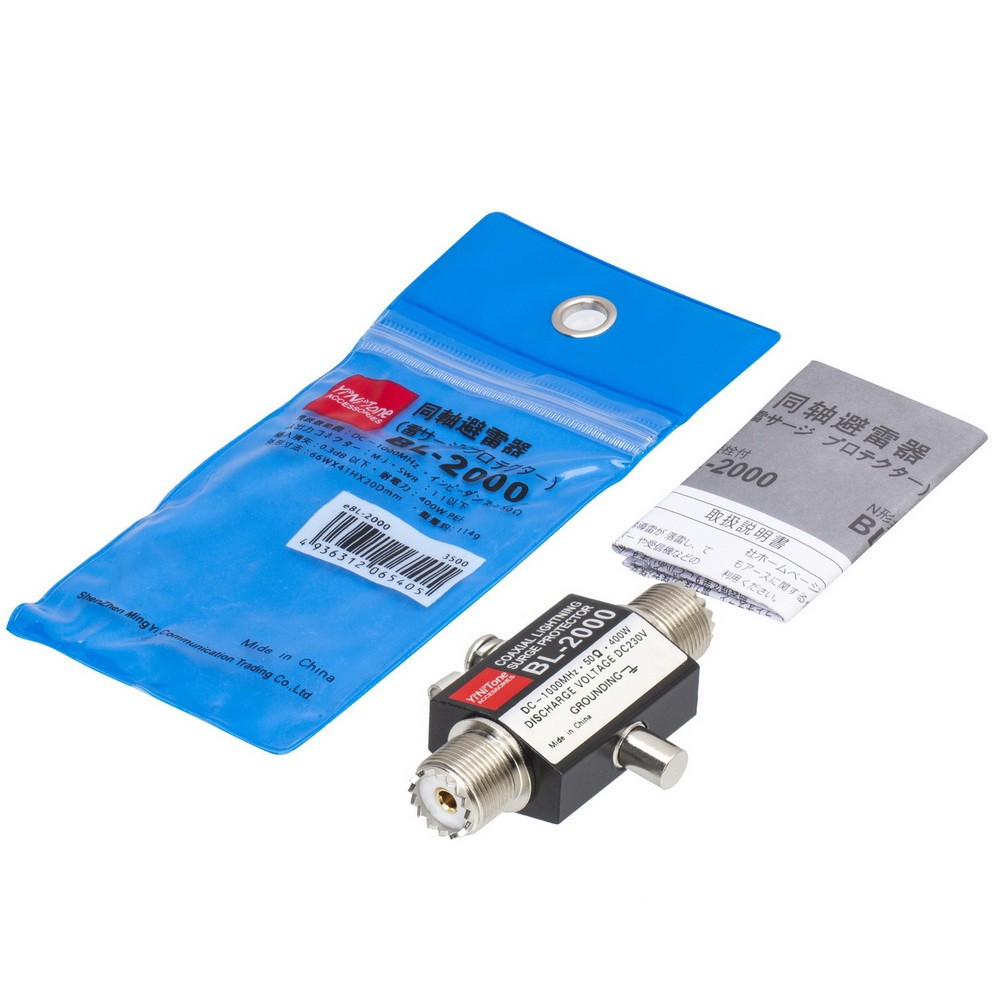

Package List:

1*Coaxial Lightning Arrestor
