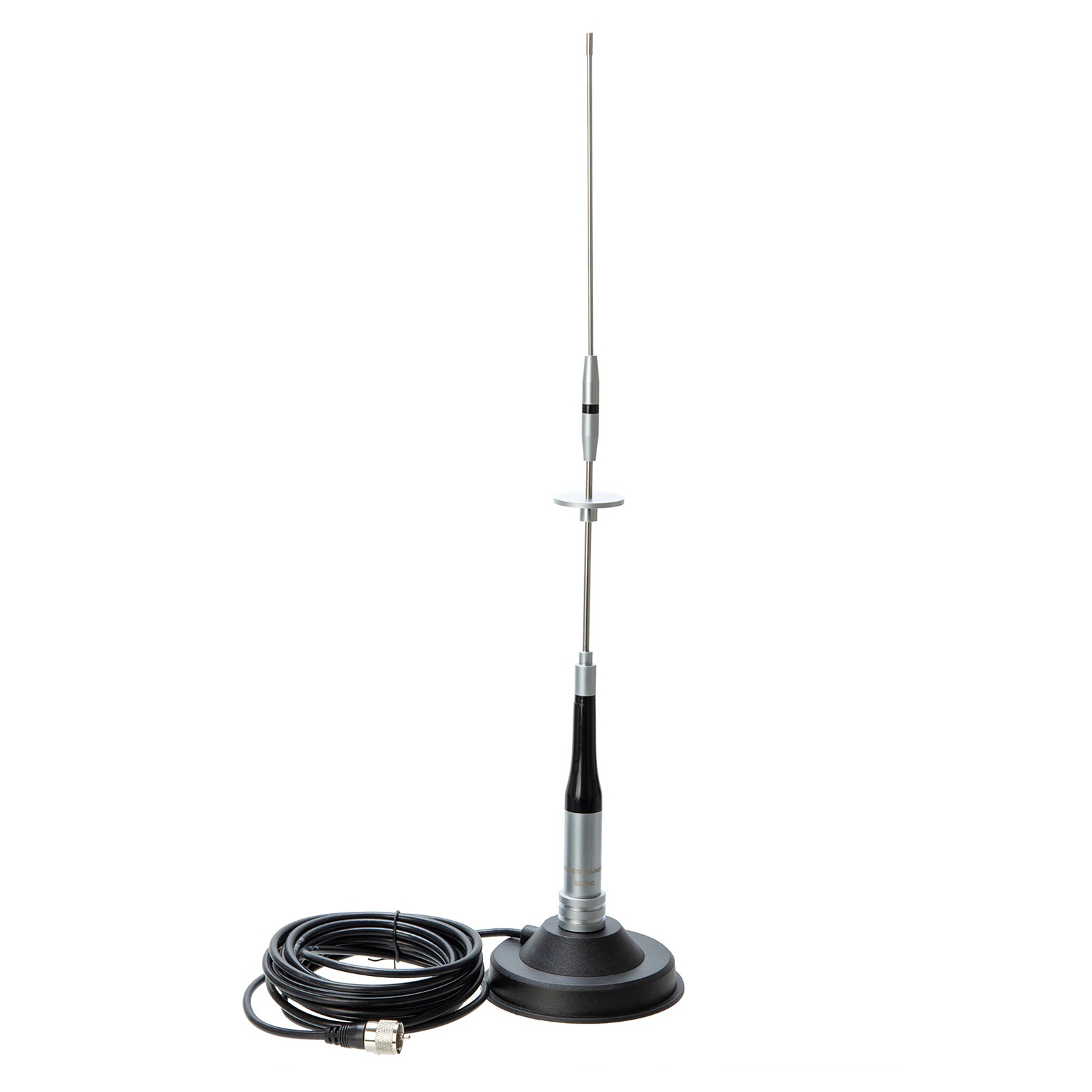

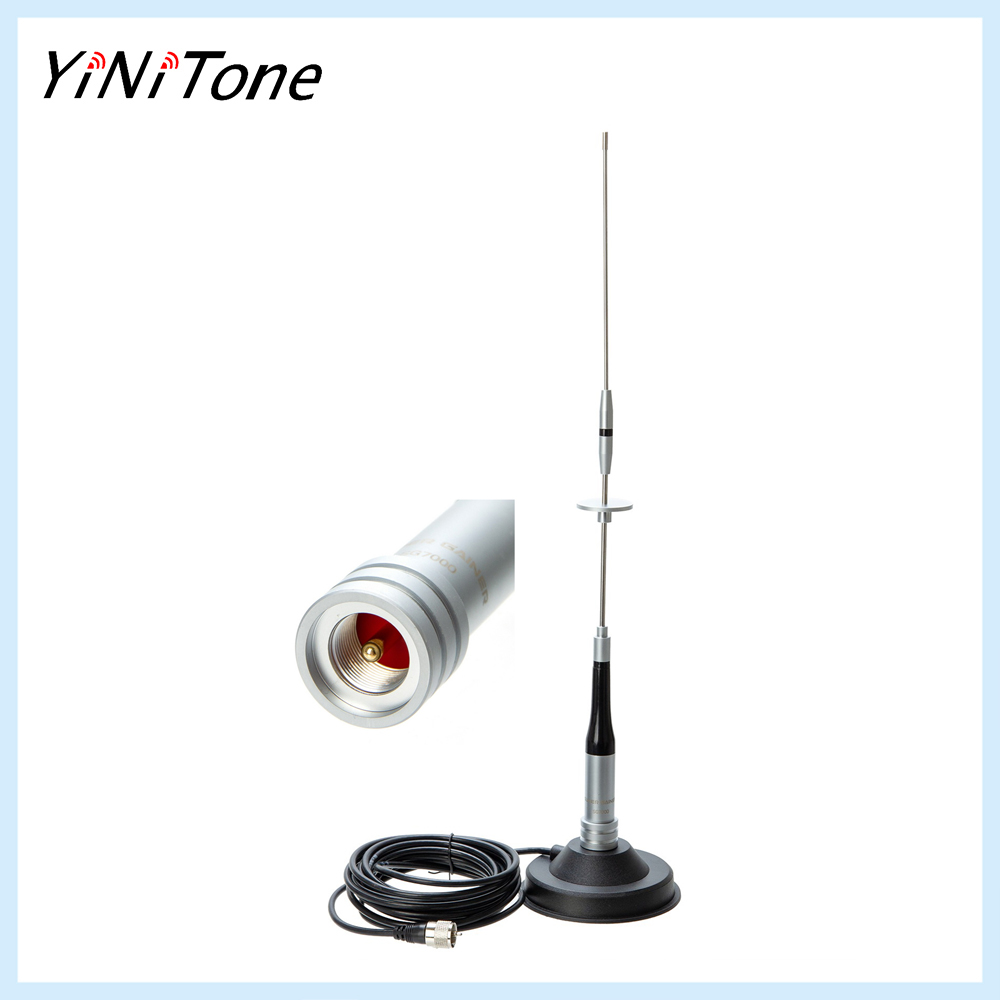

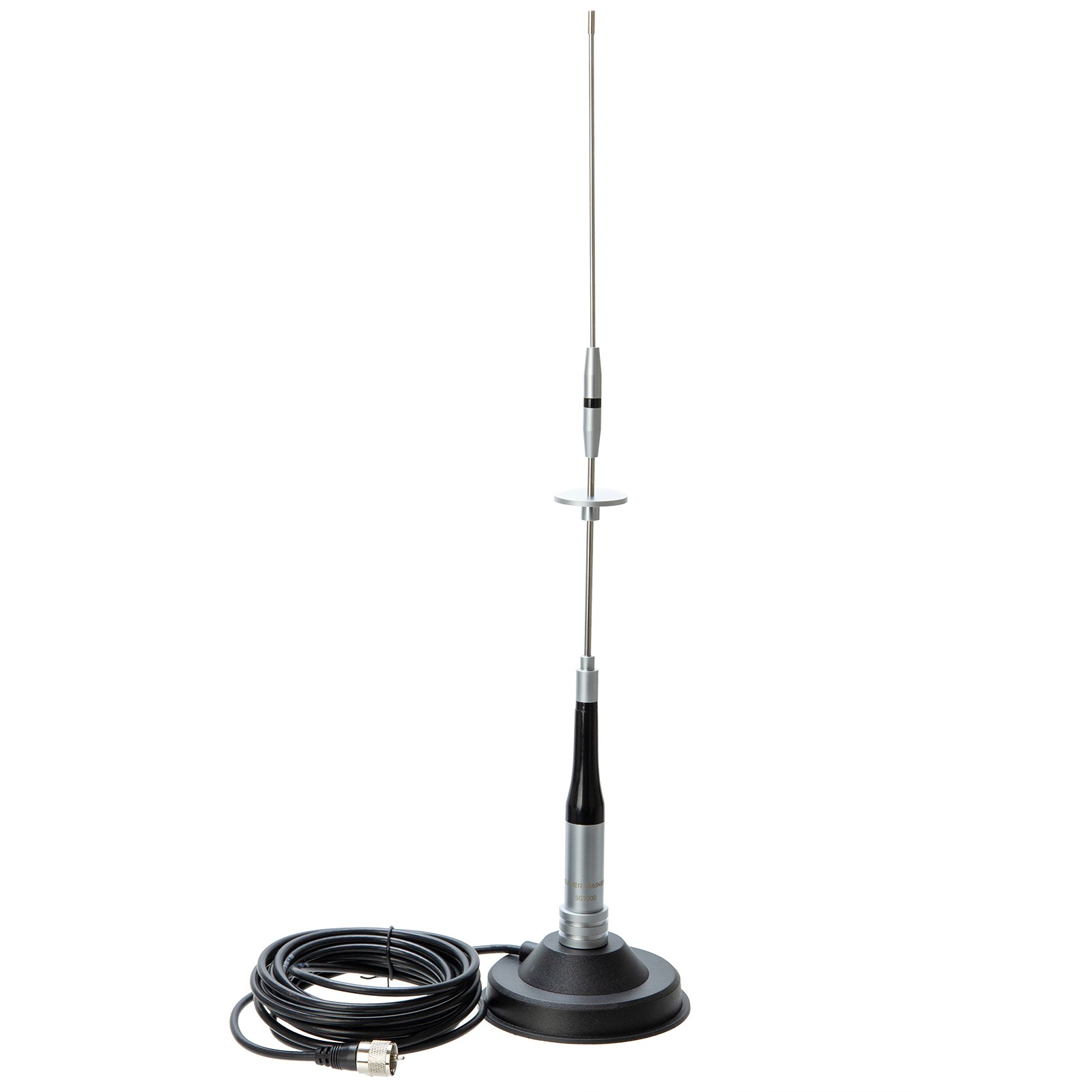

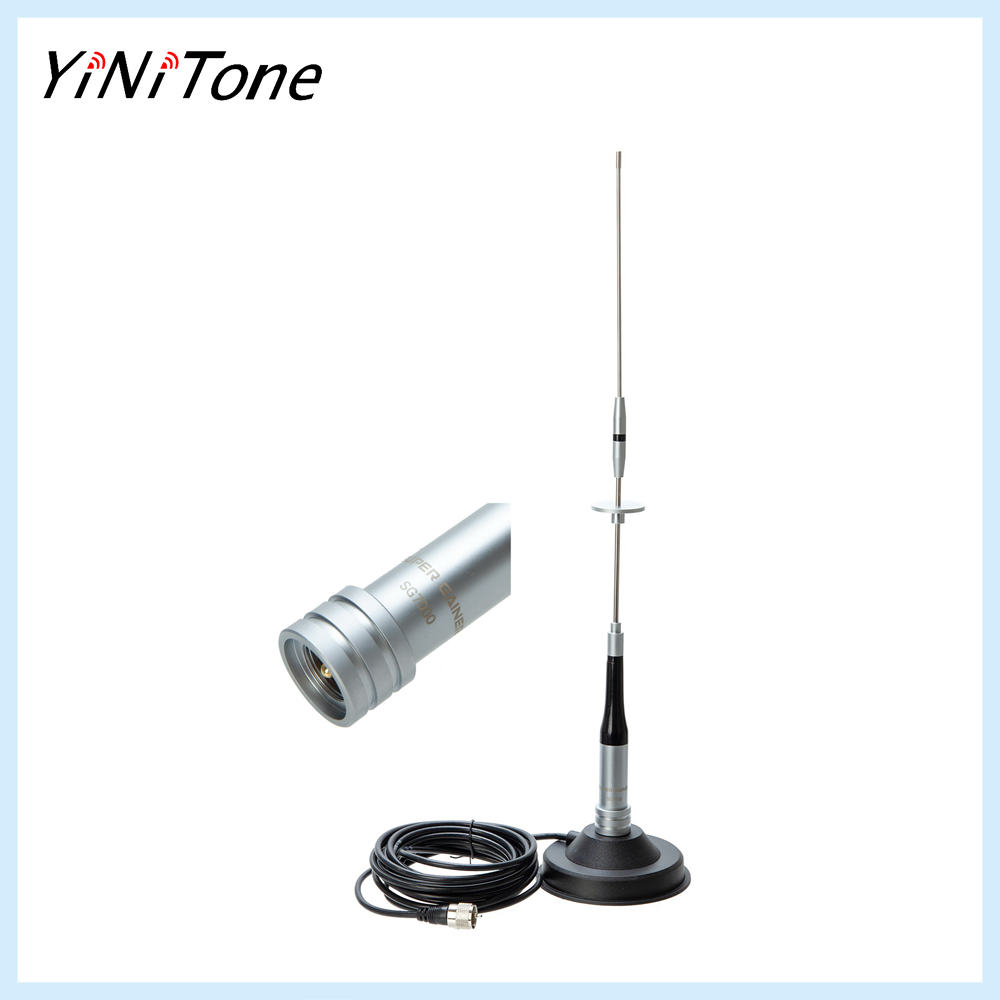

SG7000 144/430MHz High Gain Mobile Car Radio PL259 Antenna 5M UHF Male Coax Cable 12CM Magnetic Mount Base

SG7000 Mobile Car Radio PL259 Antenna VHF/UHF High Gain 5M UHF Male Coax Cable 12CM Big Magnetic Mount Base

SG7000 Antenna Description：

ELECTRICAL SPECIFICATIONS

Frequency Range:144/430MHz(VHF136-174MHz UHF400-470MHz)

Gain:2.15dBi/3.8dBi

V.S.W.R<1.5

Input Impedance:50Ω

Radiation:Omni

Maximum Power Input-watts:100W

Polarization:Vertical

Lighting Protection:Direct Ground

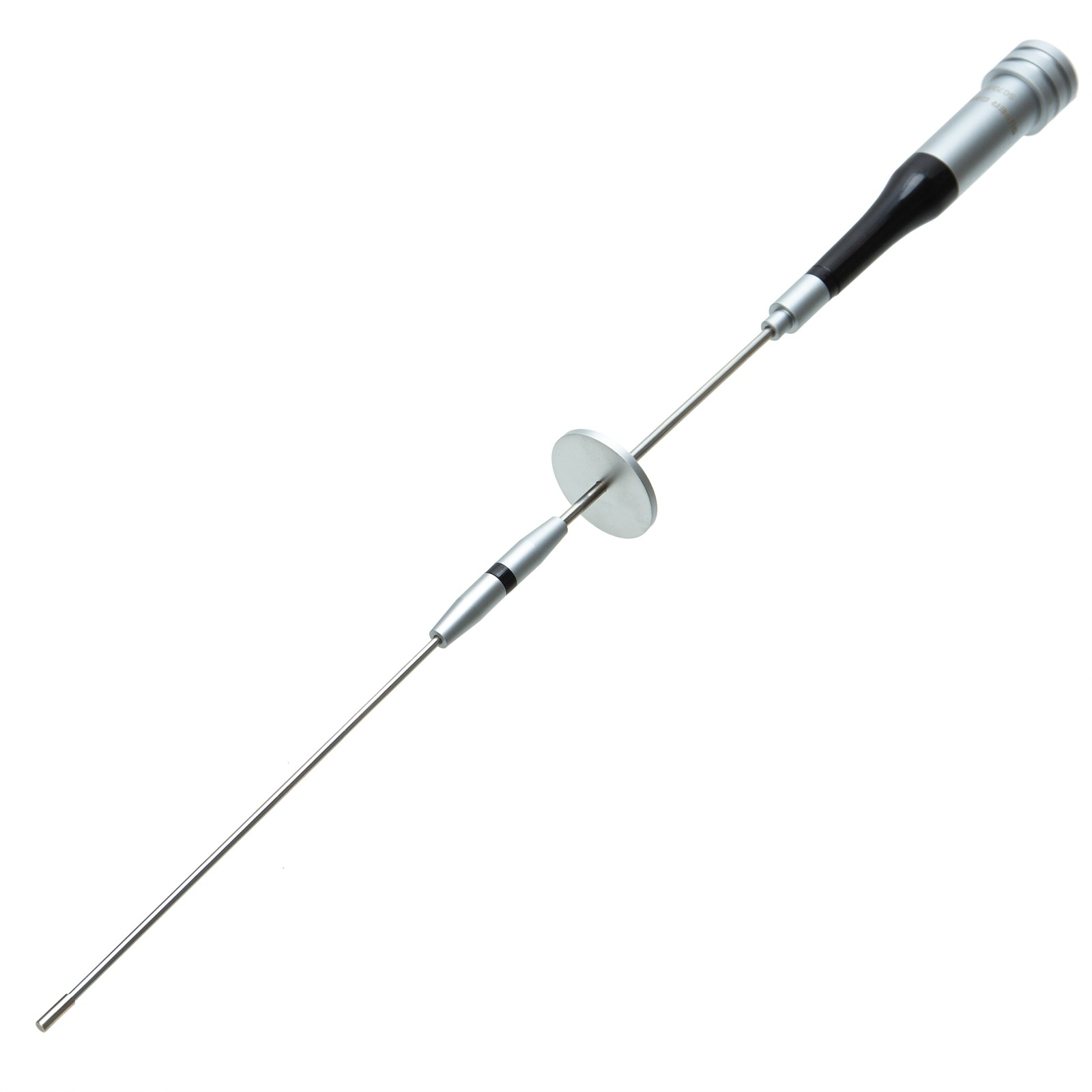

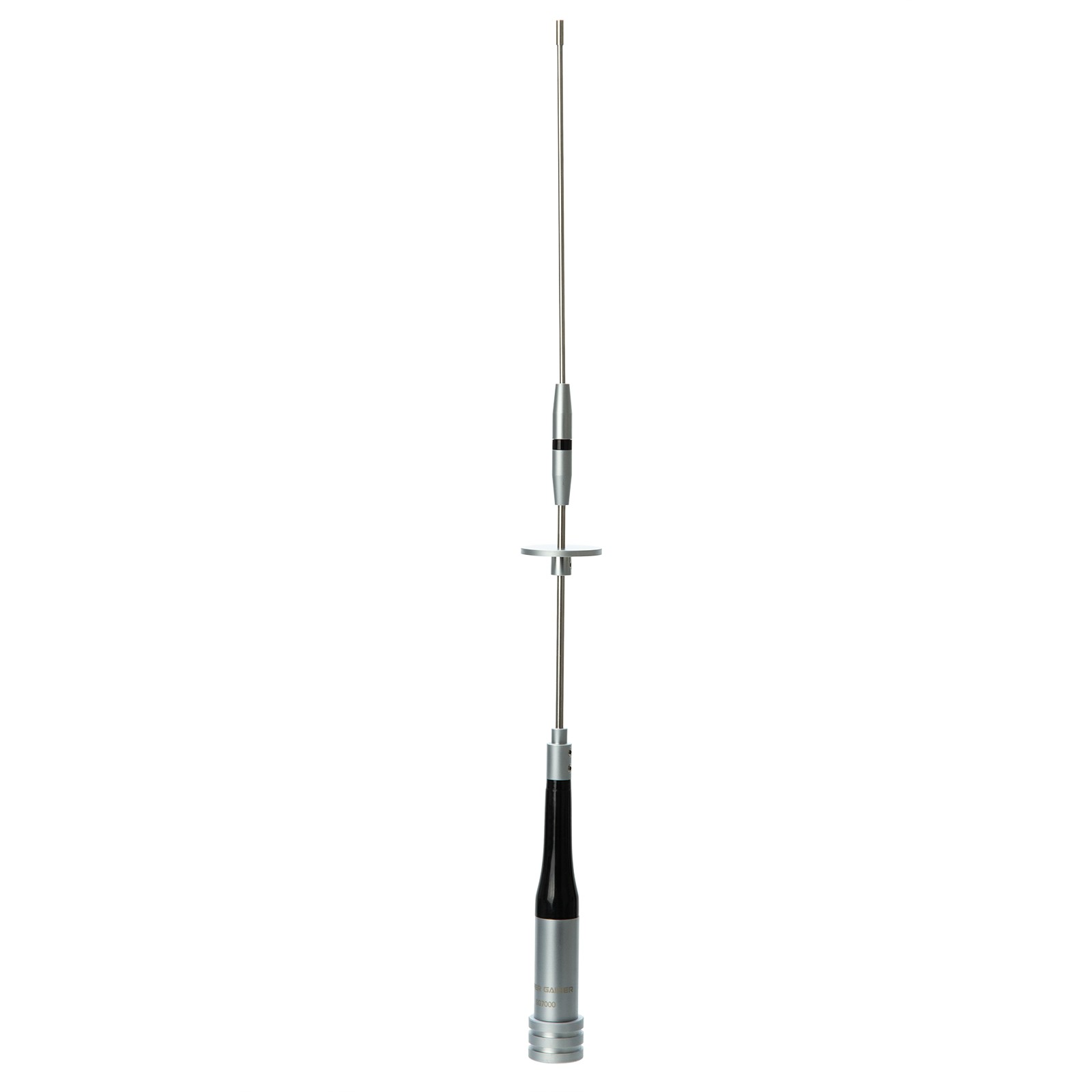

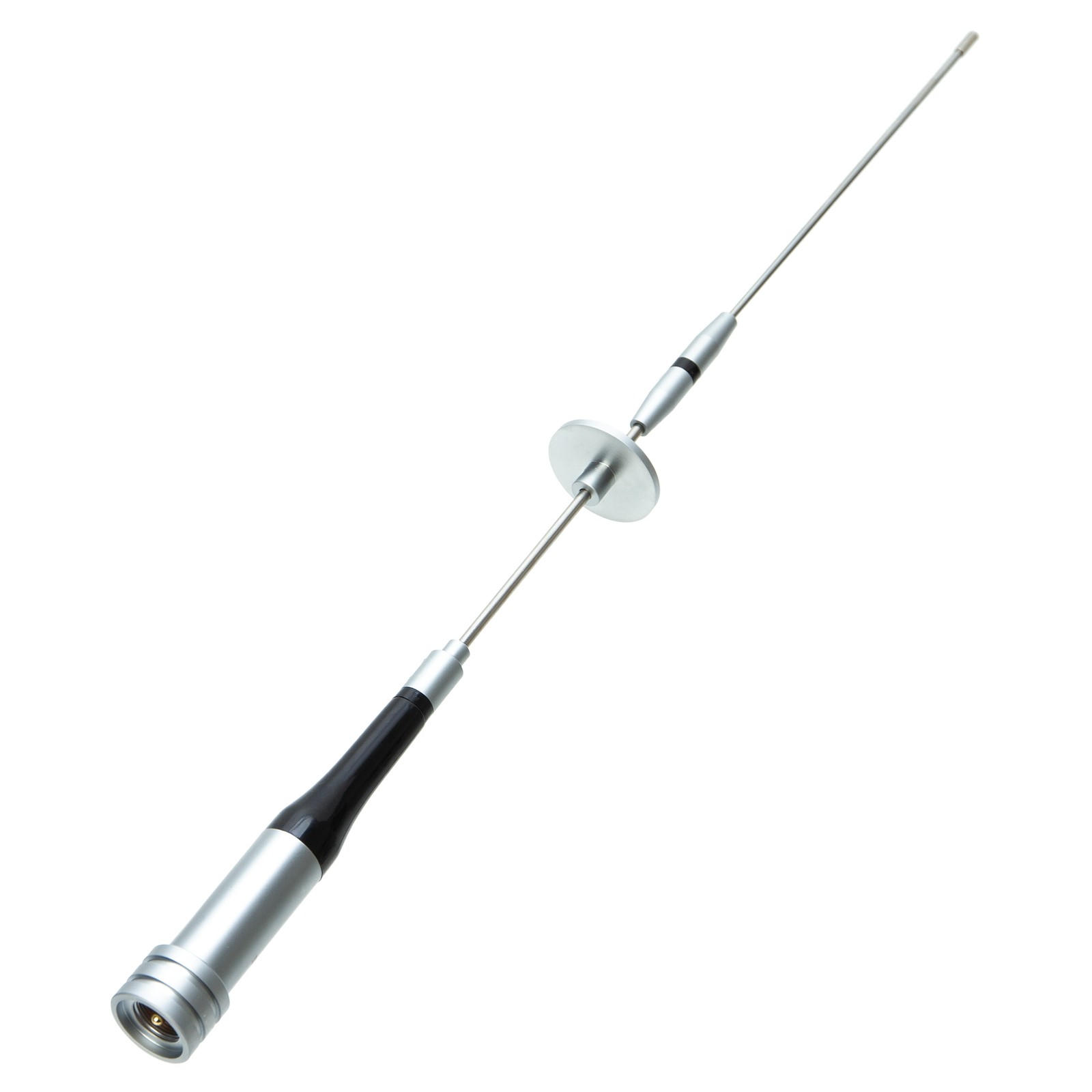

SG7000 Antenna Mechanical Specifications：

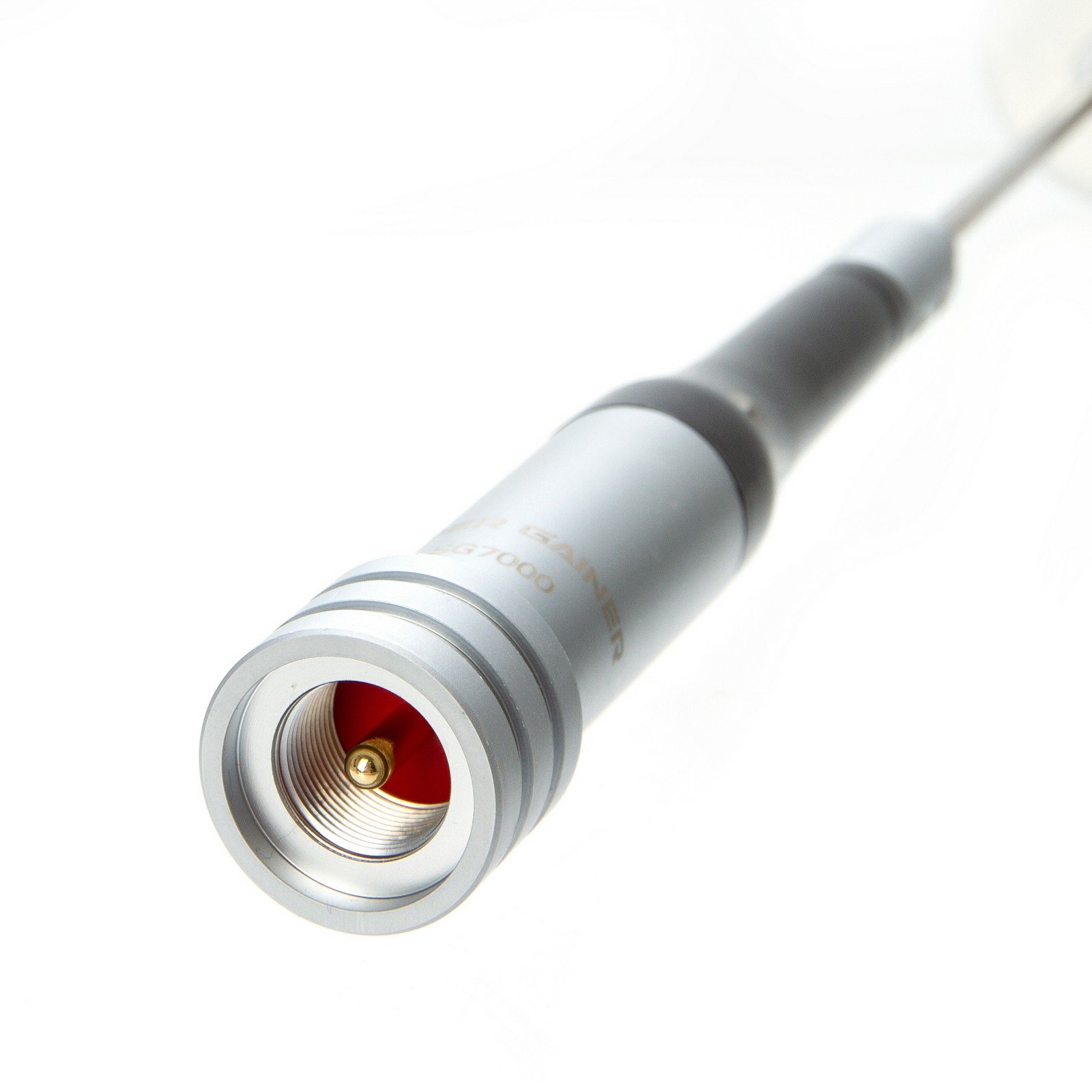

Connector Type:M-type(PL259 UHF)

Radome Material:Stainless steel

Net Weight:0.3kg

Length:53cm

Diameter of Chassis:?28±0.2 mm

Magnetic Base with Cable Feature：

Brand new and never used

Completely Waterproof Design

Rubberized Magnet Cover no body scratching

Won't rip off in high speeds or winds

5m RG-58 /U Cable

Coax Cable with PL-259/SO-239/UHF Male Connector

Magnetic Base with PL-259/SO-239/UHF Female Connector

Weight:690g

Size:12cm

Color:Black

Compatible with MOTOROLA YAESU ICOM KENWOOD TYT QYT Wouxun mobile radio antenna which with SO239 interface

Package Contents:

1*SG7000 Mobile Antenna (UHF-M)

1*Big Magnetic Base and 5m Coaxial Cable
