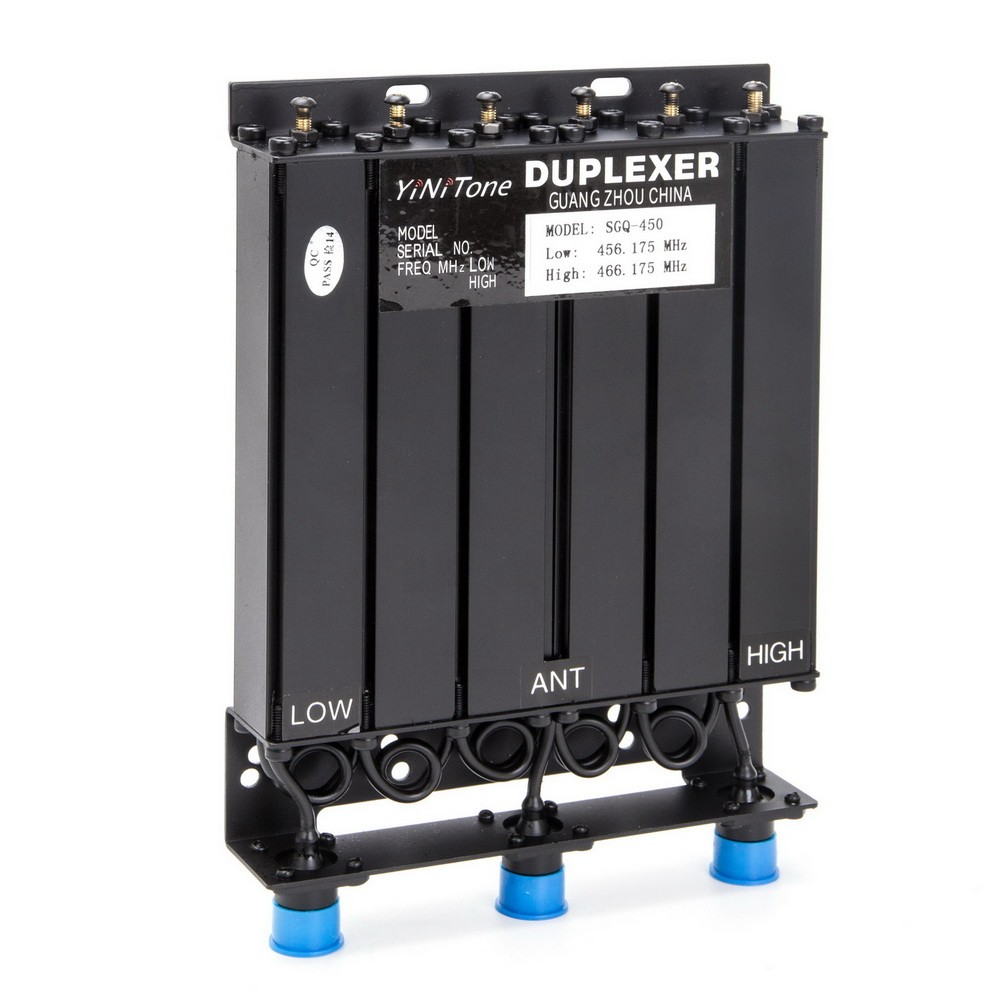

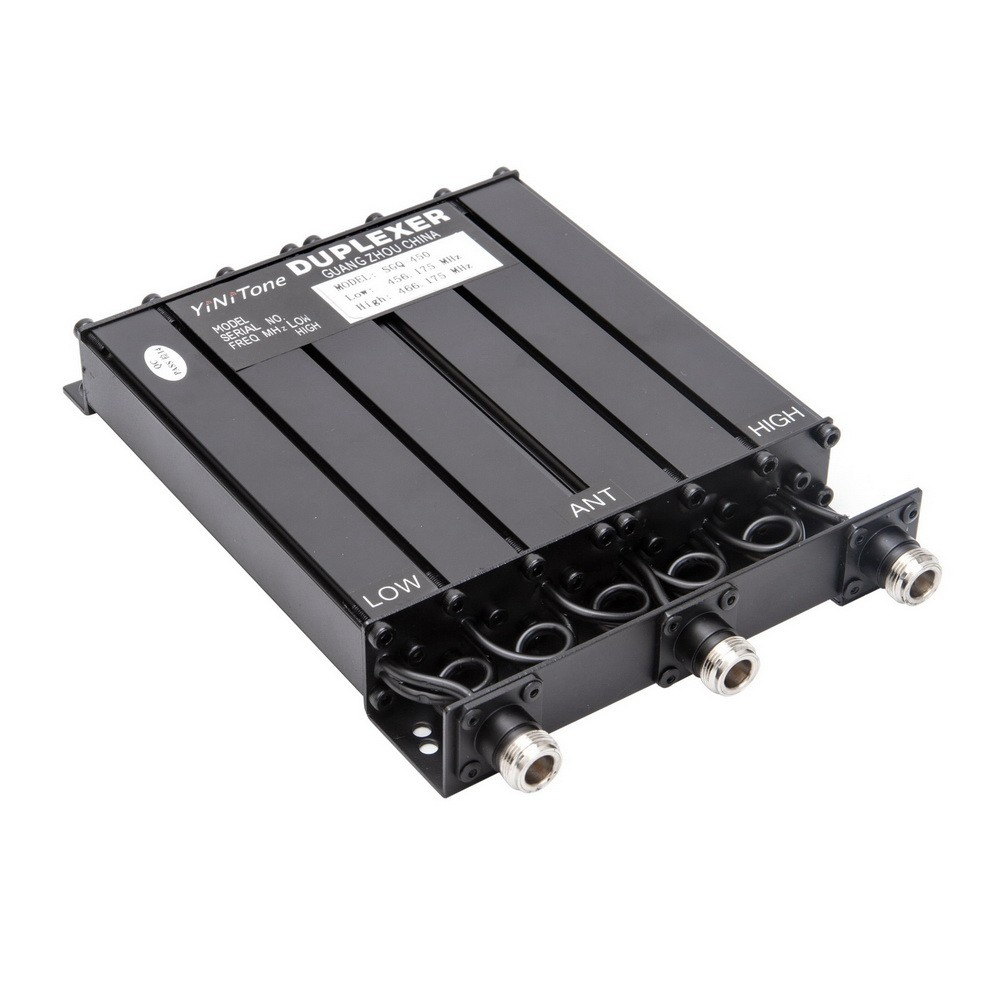

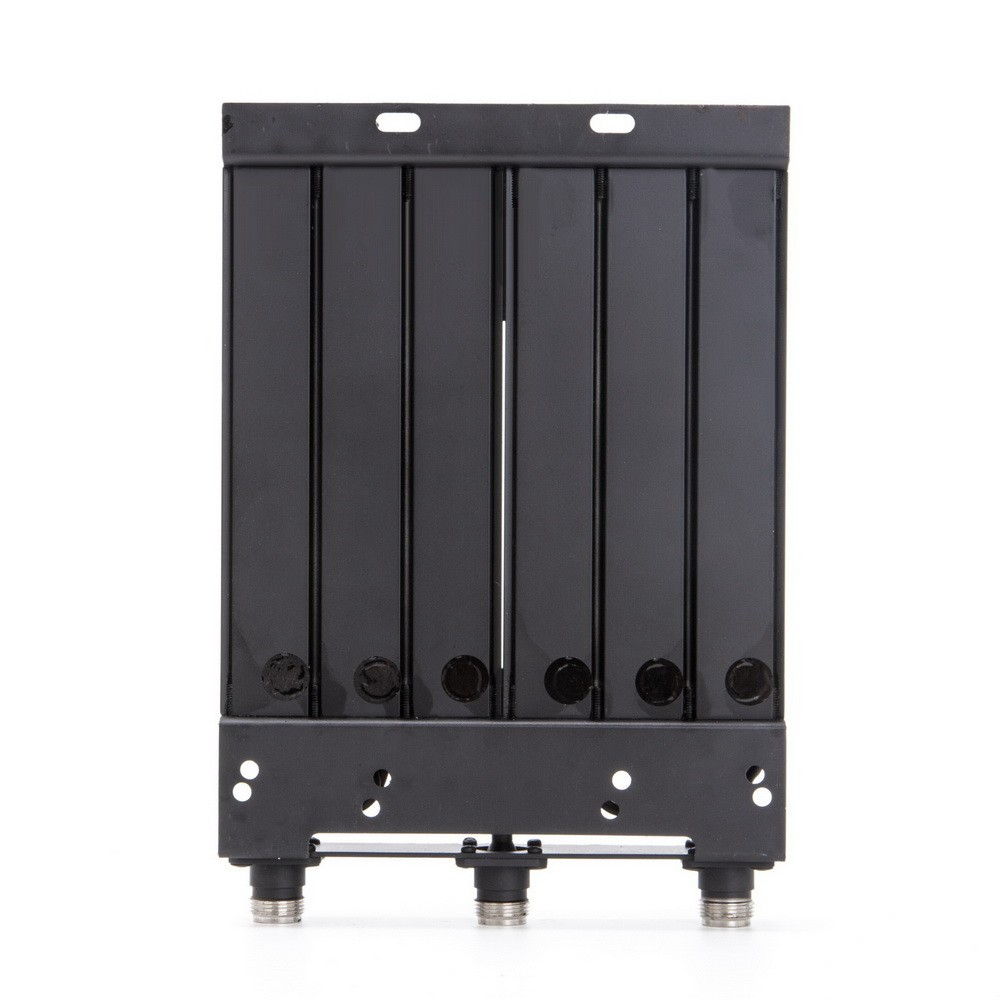

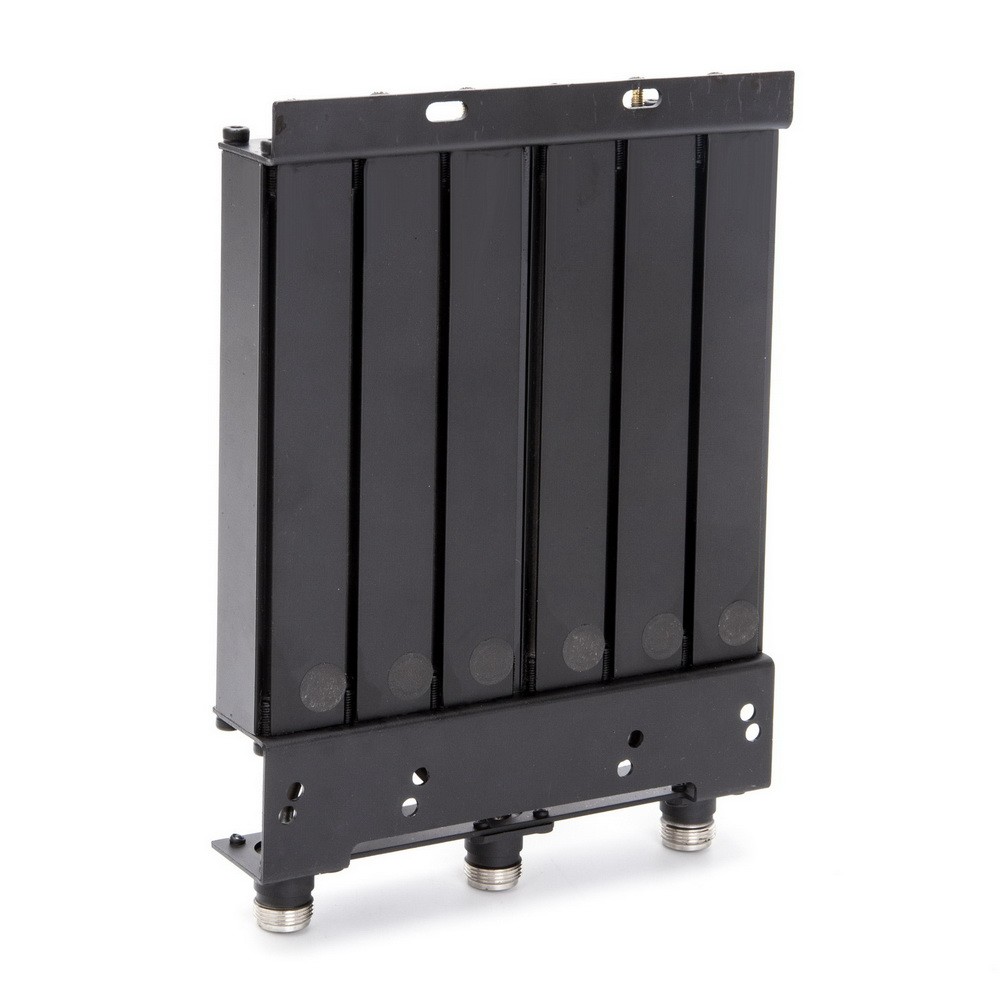

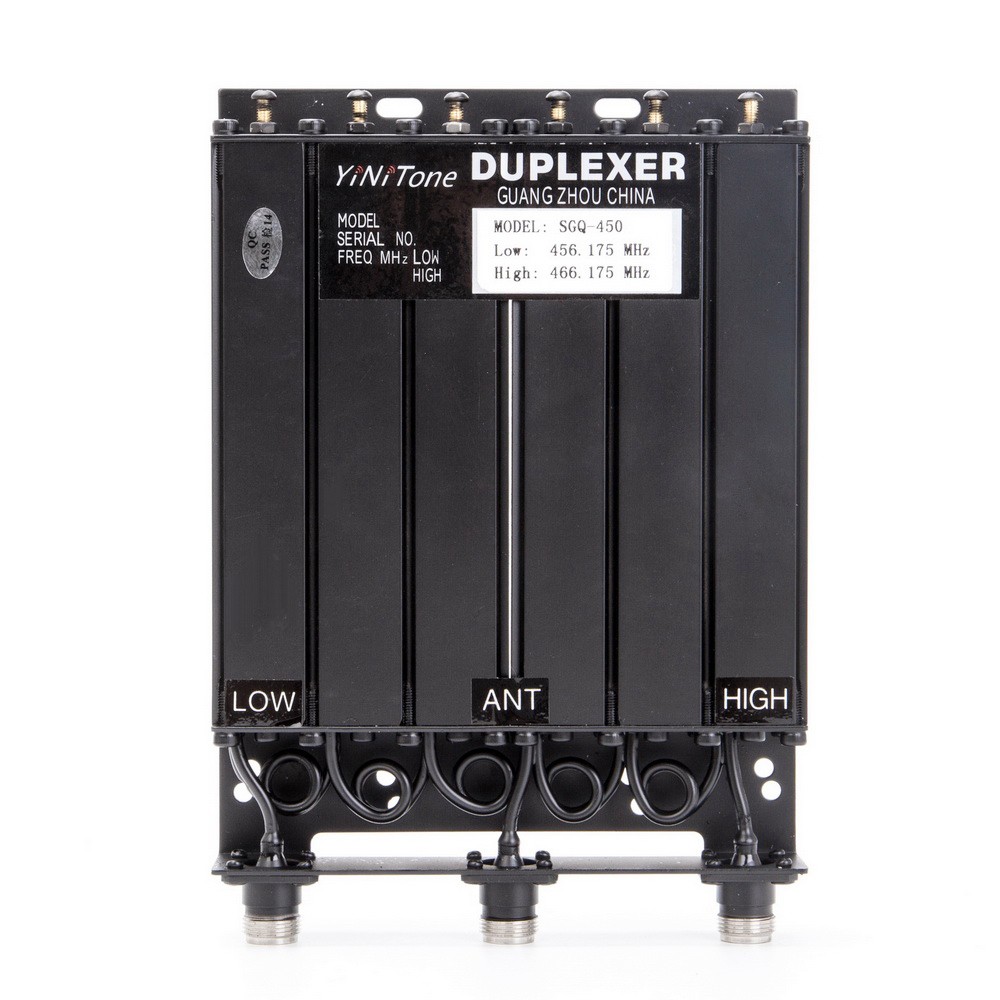

SGQ-450 N connector 25W UHF400-470MHz 6 Cavity Portable Duplexer Customizable Frequency

SGQ-450 6 Cavity N connector 25W UHF400-470MHz Customizable Frequency Portable Duplexer

note：

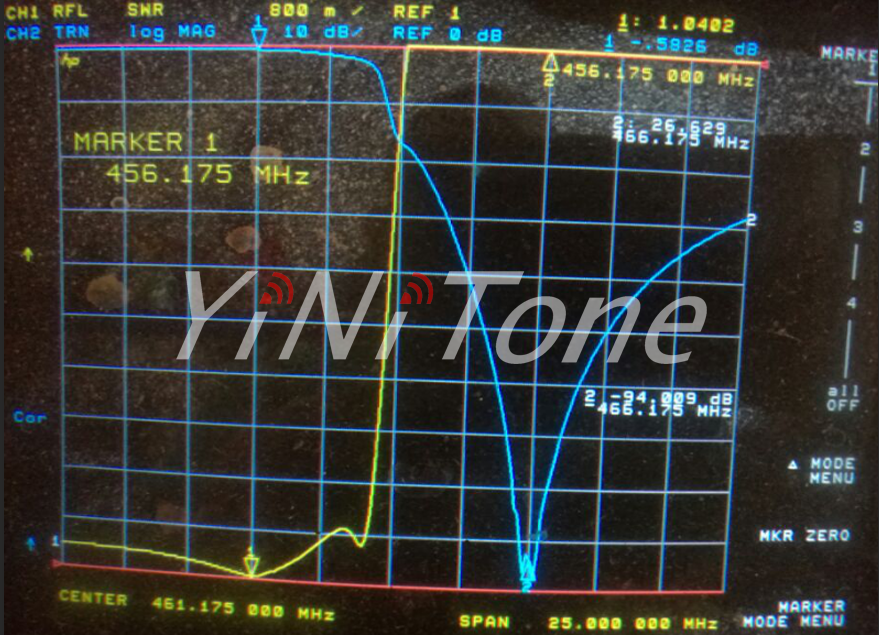

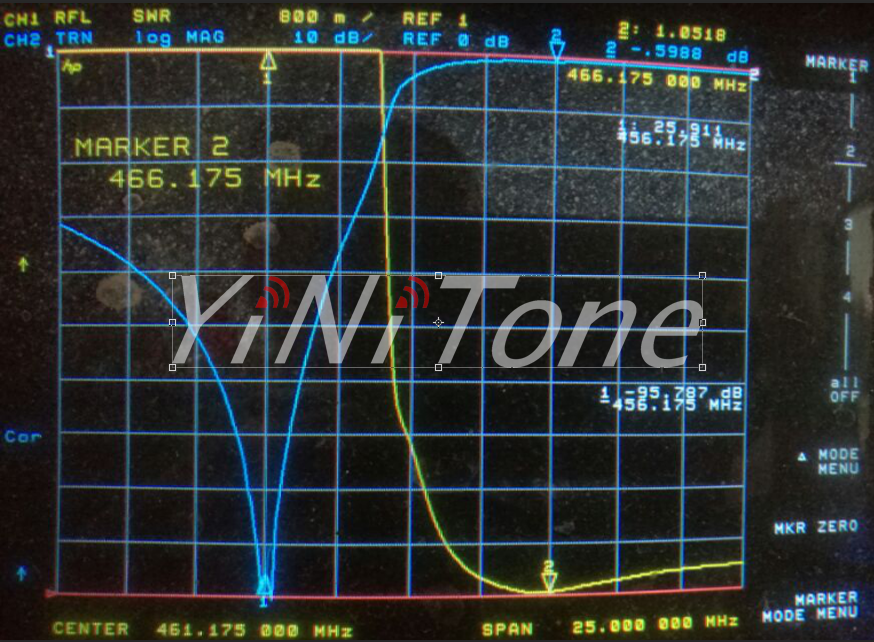

Be sure to note the required frequency point, otherwise the default TX：456.175/RX：466.175MHZ

Specification:

Product Number：SGQ-450

Frequency Range：400-470MHz

Bandwidth：±200KHz

Frequency Spacing：10MHz

Isolation Loss：≤0.8dB

V.S.W.R：≤1.3

Isolation：≥80dB

Suppression：≥80dB

Impedance：50Ω

Max.power Input：20-35W(25W）

Standard Termination：N-Female

Operating temperature：-25℃-+55℃

Operating Humidity：5-95%

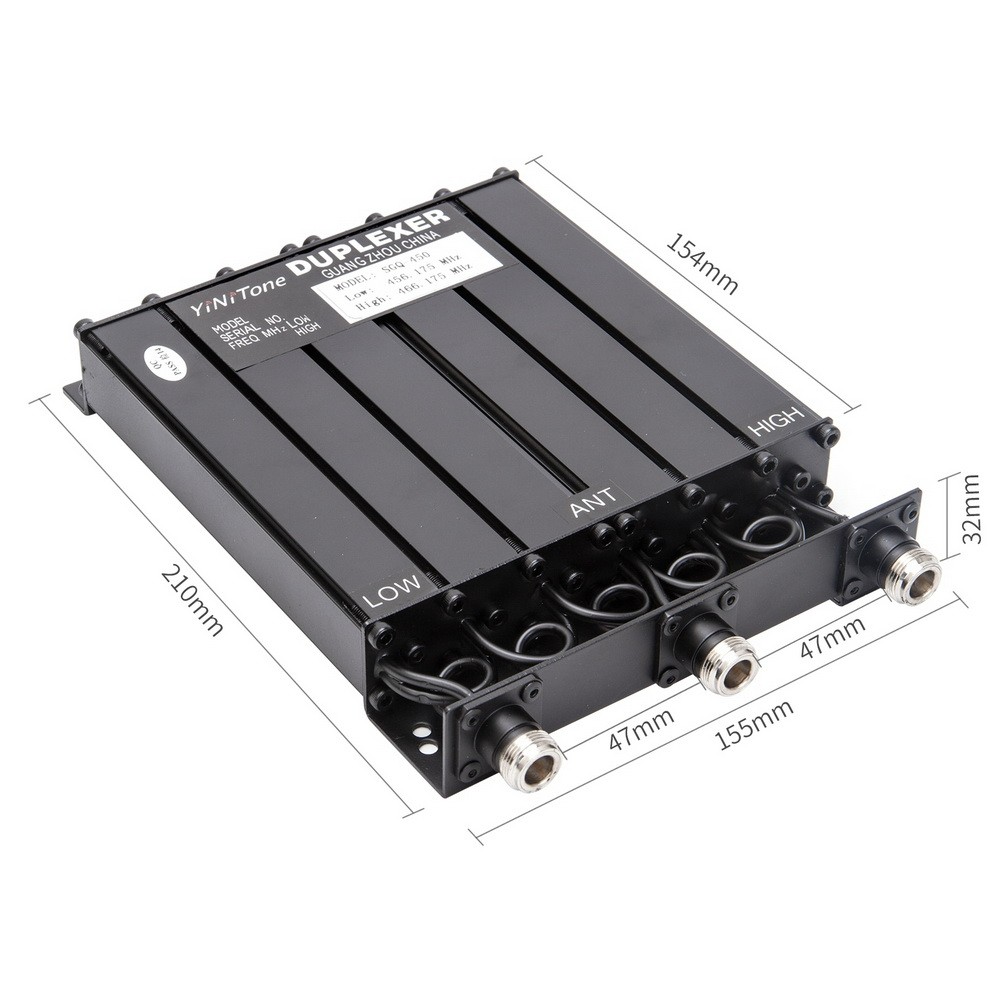

Dimensions：225×154×32mm

Weight：1.1kg

Package Including:

1*Portable Duplexer
