SURECOM SA250 Handheld 3 Band 132-173Mhz 200-260Mhz 400-519Mhz Colour Graphic Antenna Analyzer for UV-5R

SURECOM SA250 Handheld 3 Band 132-173Mhz 200-260Mhz 400-519Mhz Colour Graphic Antenna Analyzer for UV-5R

SURECOM SA250 Handheld Colour Graphic Antenna Analyzer 3 Band 132-173Mhz 200-260Mhz 400-519Mhz

Main Features:

1.2.2" precision LCD screen,High-lumen LCD brightness,easy to read in direct sunlight.

2.Heavy duty Aluminum enclosure,strong anti-interference ability.

3.Very compact and convenient for field use.

4.Built-in rechargertable Li-ion battery.

5.Full Band control (No need select Band ).

6.Easy setup, only four control buttons with convenient on-screen soft menus.

7.Constant Battery Status Indicator and Auto Shut-off

8.Built-in timer shows elapsed time when unit is turned on

9.High efficiency IC, low power consumption, the longest working hours.

10.More choice measurement frequency Span .

11.One botton quick scan mode (V1,V2U) or 3 band by full screen.

12.Auto marker the Best s.w.r. level reference.

Specifications:

Model No:8A-250

Frequency Range:132-173Mhz/200-260Mhz/400-519MHz

Connector:SMA-Female (50 OHM)

RF Output Power:1-1.5V(5-10dB)

Frequency Step:0.1/1/10/100/1000KHz

V.S.W.R.Range:1.00-19.99

Deviation:±0.1

ZRX Range:0-99.9

Build-in Battery :3.7V 900mah,Li-ion 14500

Voltage input :DC5V＞500mA

Frequency stability:＜0.5PPM

Span width:0.54MHz/1.35MHz/2.7MHz/5.4MHz/10.8MHz/27MHz/54MHz/108MHz/216MHz/432MHz

Charger indicator:Two-color LED Hidden (when not charging) there are three instructions state.1.charging(red);2.charging is completed(green);3.Battery fault(flashing)

Charger Plug:Standard micro USB connector

Size:70x120 x 25mm

Colour Display:TFTLCD 320x240 pixels

Weight:172g

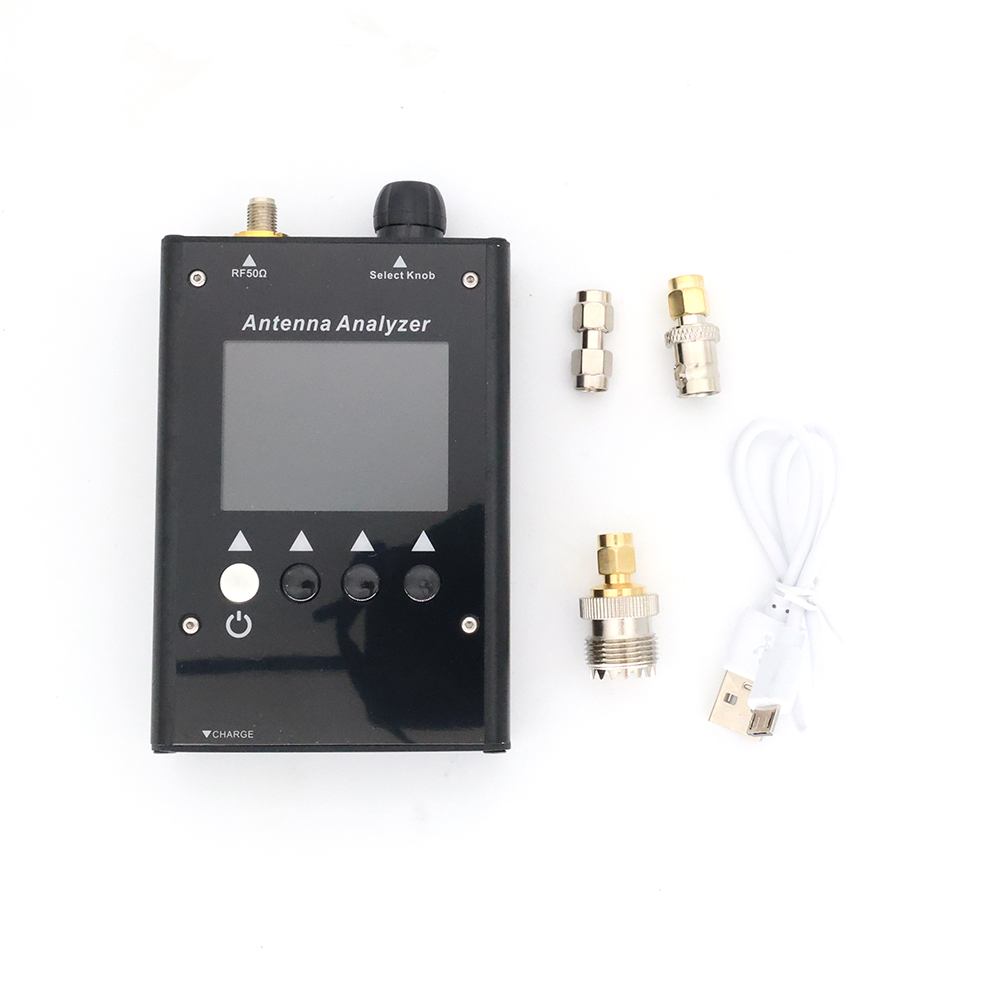

Product List:

SA-250 Antenna Analyzer*1

USB Charger Cable*1

User's Manual*1
