Model |
SP231209144847 |
|
Packing Size |
19*13*5cm |
|
Including Packing Weight |
200.0g |
|
LOGO Custom |
Yes |
|
Minimum Order Quantity |
Contact with Sales |
|
Model |
SP231209144847 |
|
Packing Size |
19*13*5cm |
|
Including Packing Weight |
200.0g |
|
LOGO Custom |
Yes |
|
Minimum Order Quantity |
Contact with Sales |

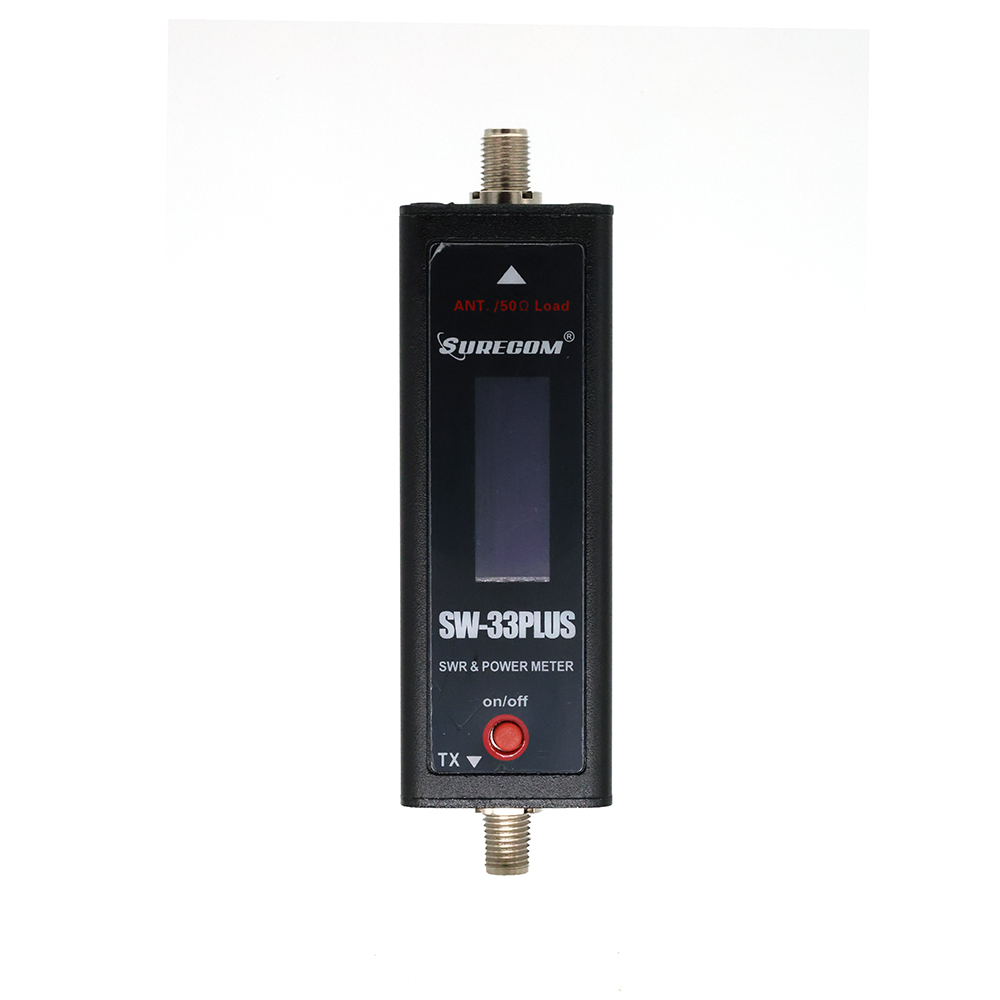

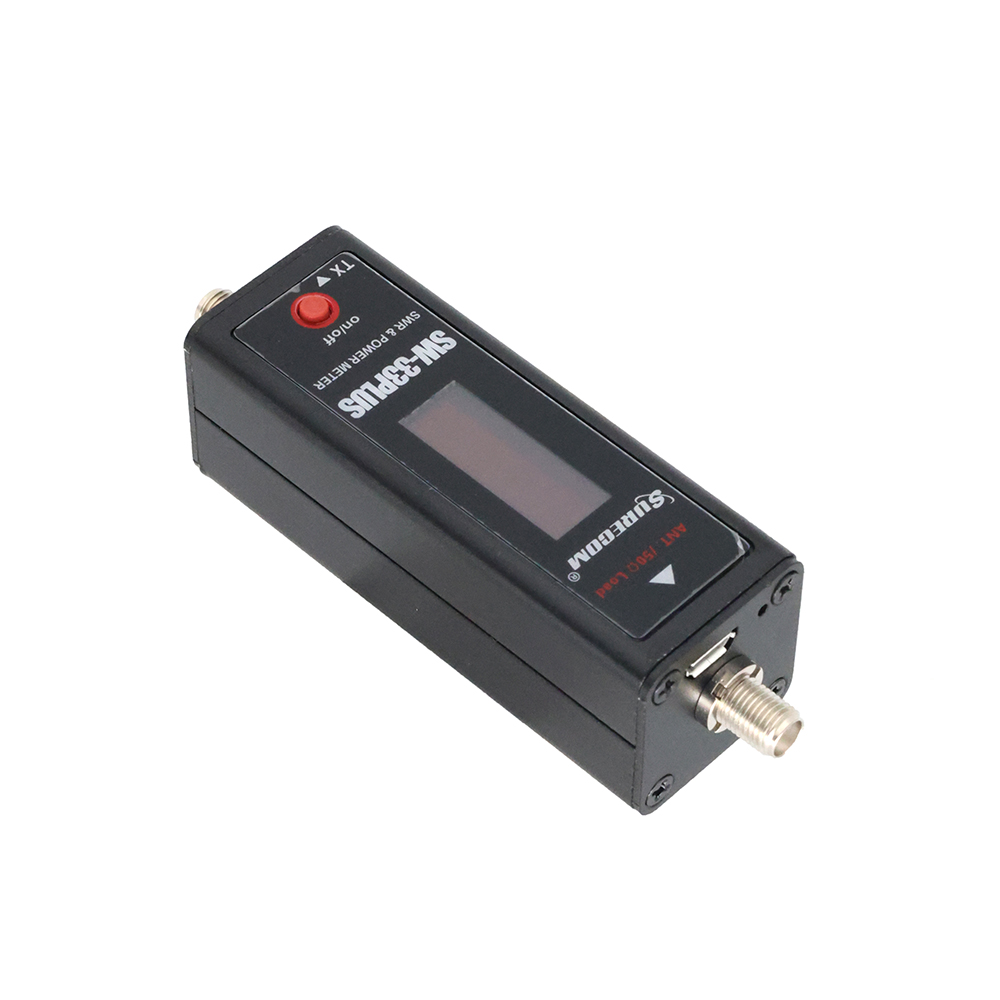

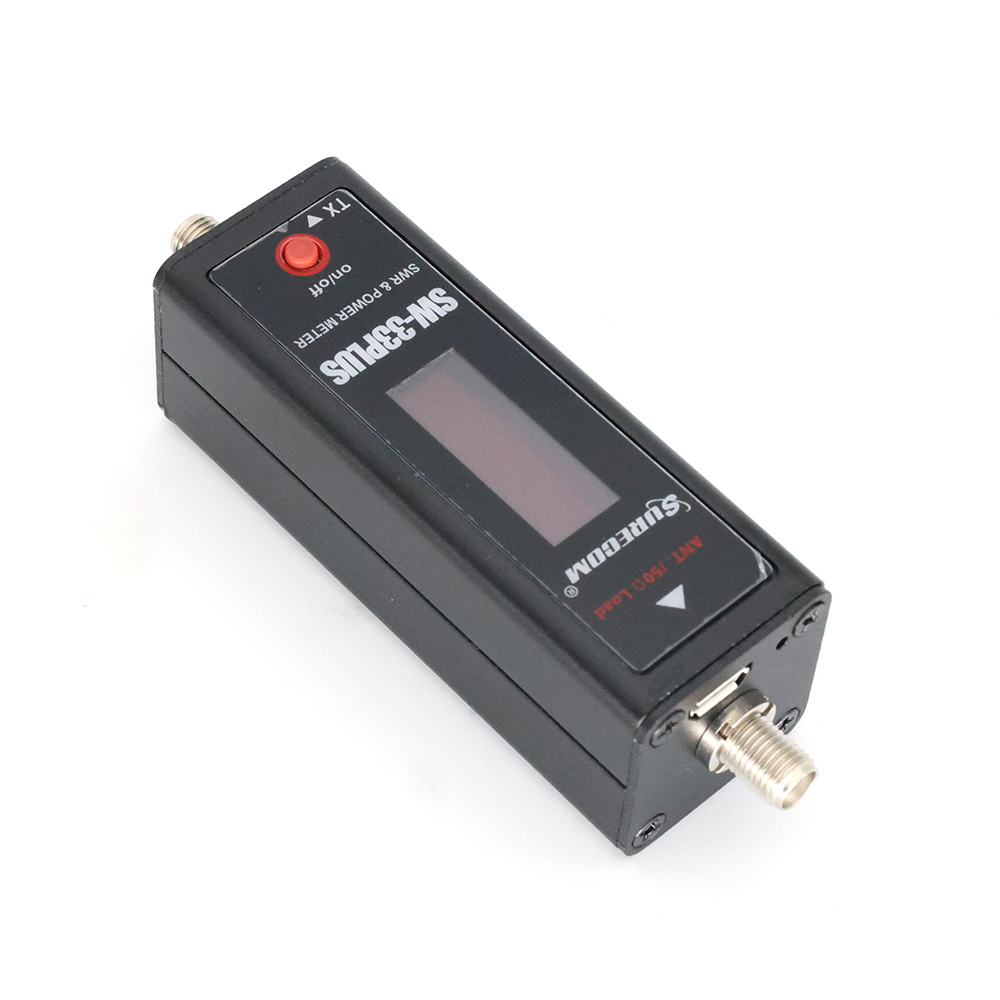

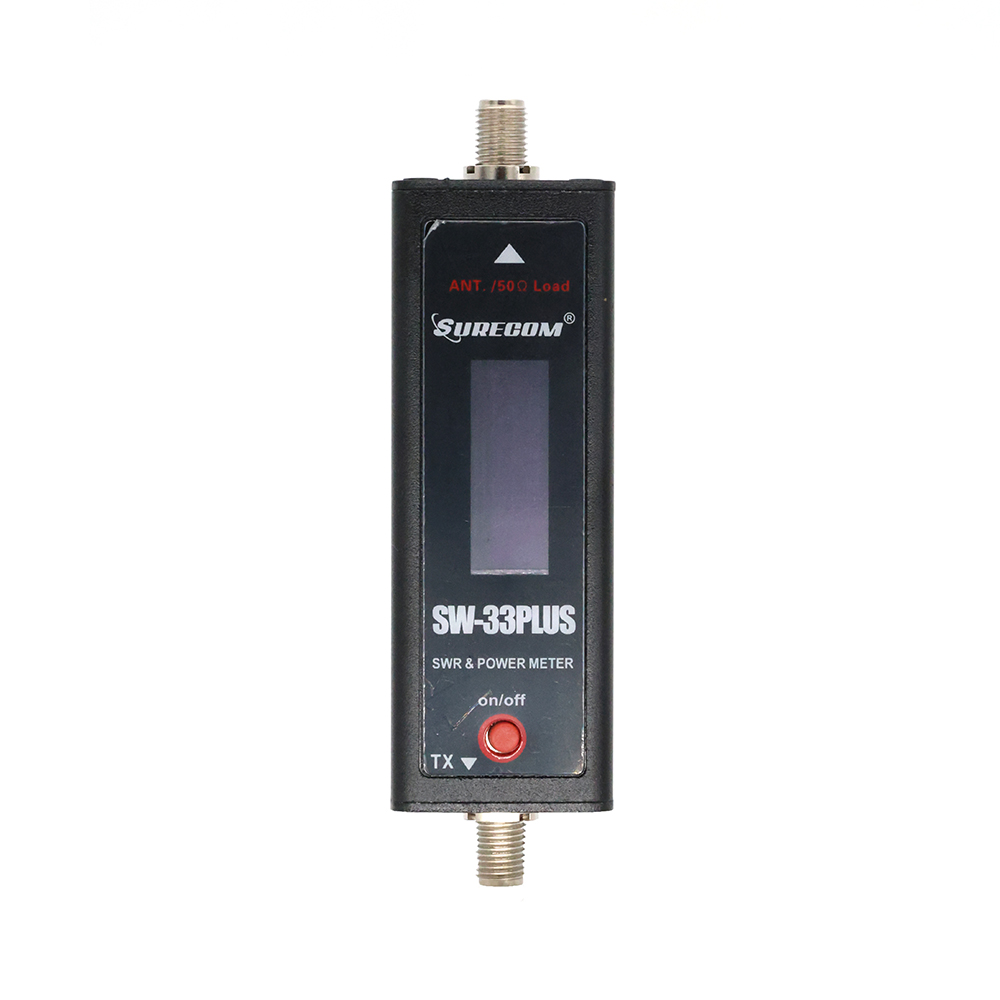

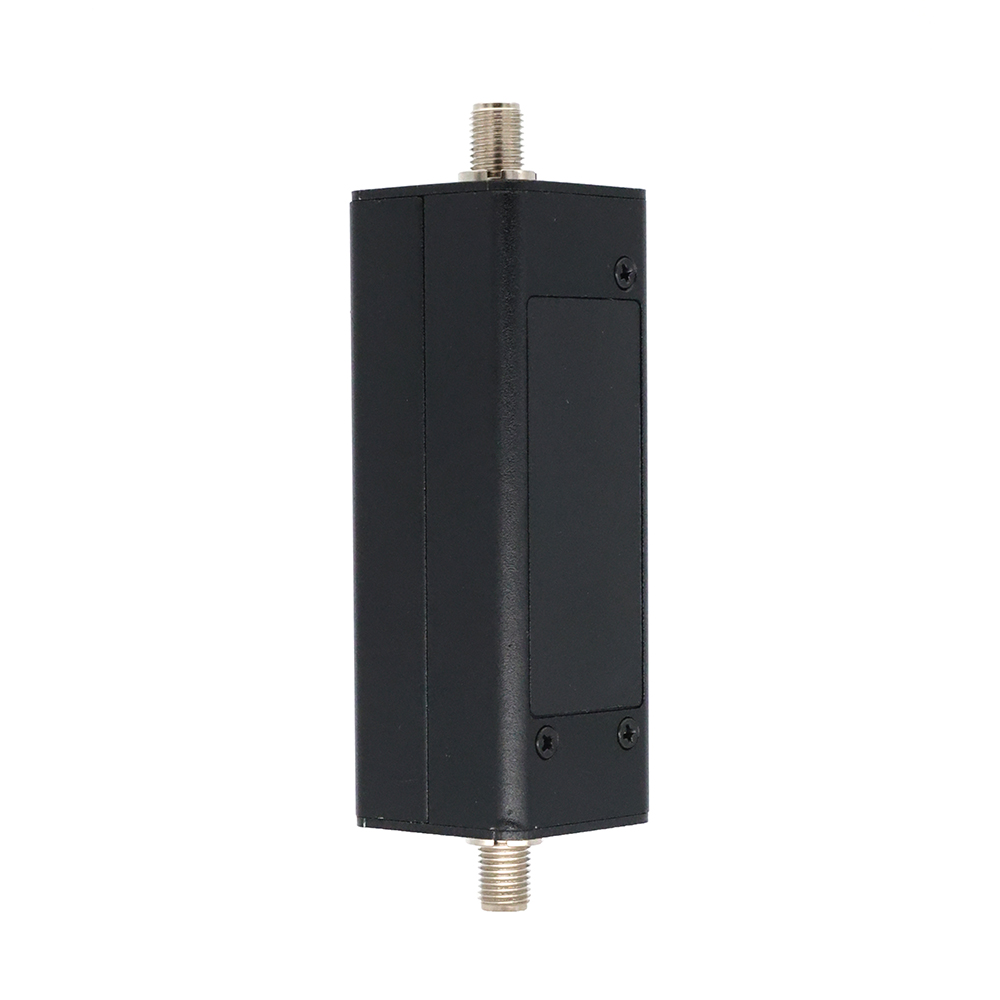

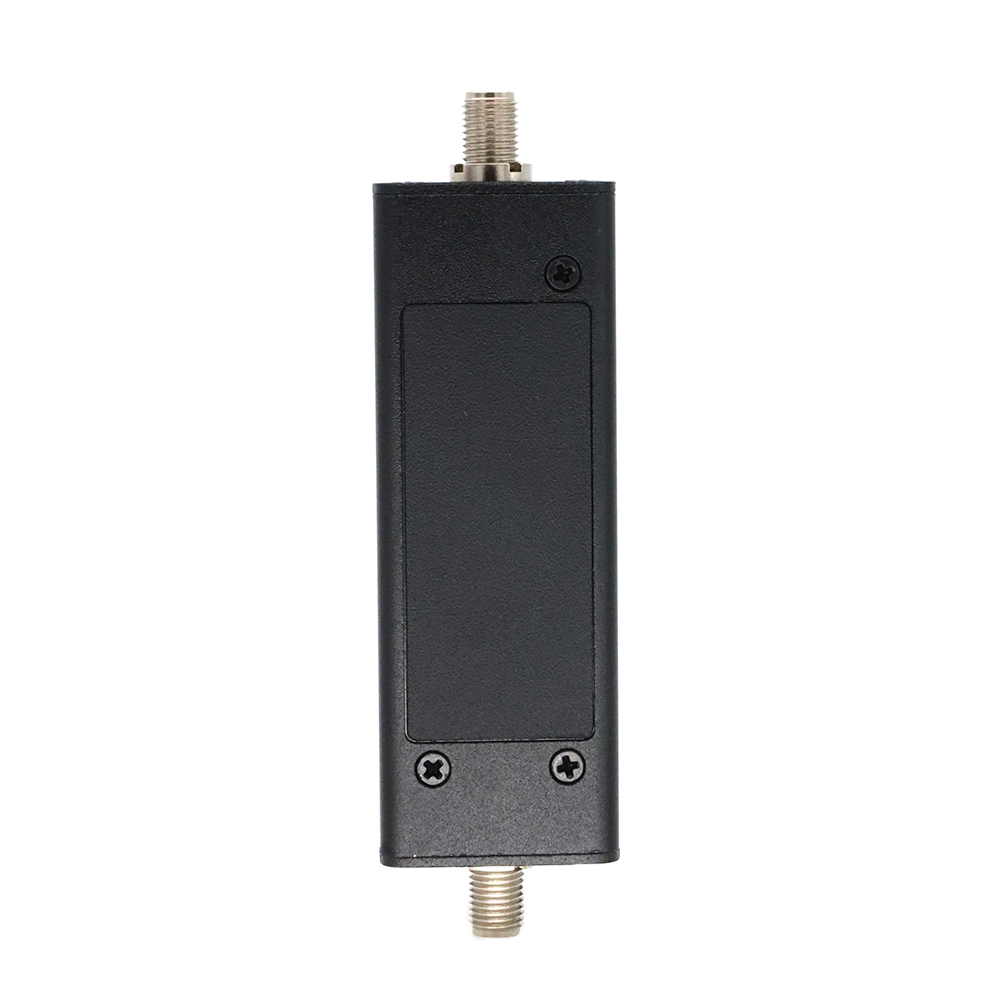

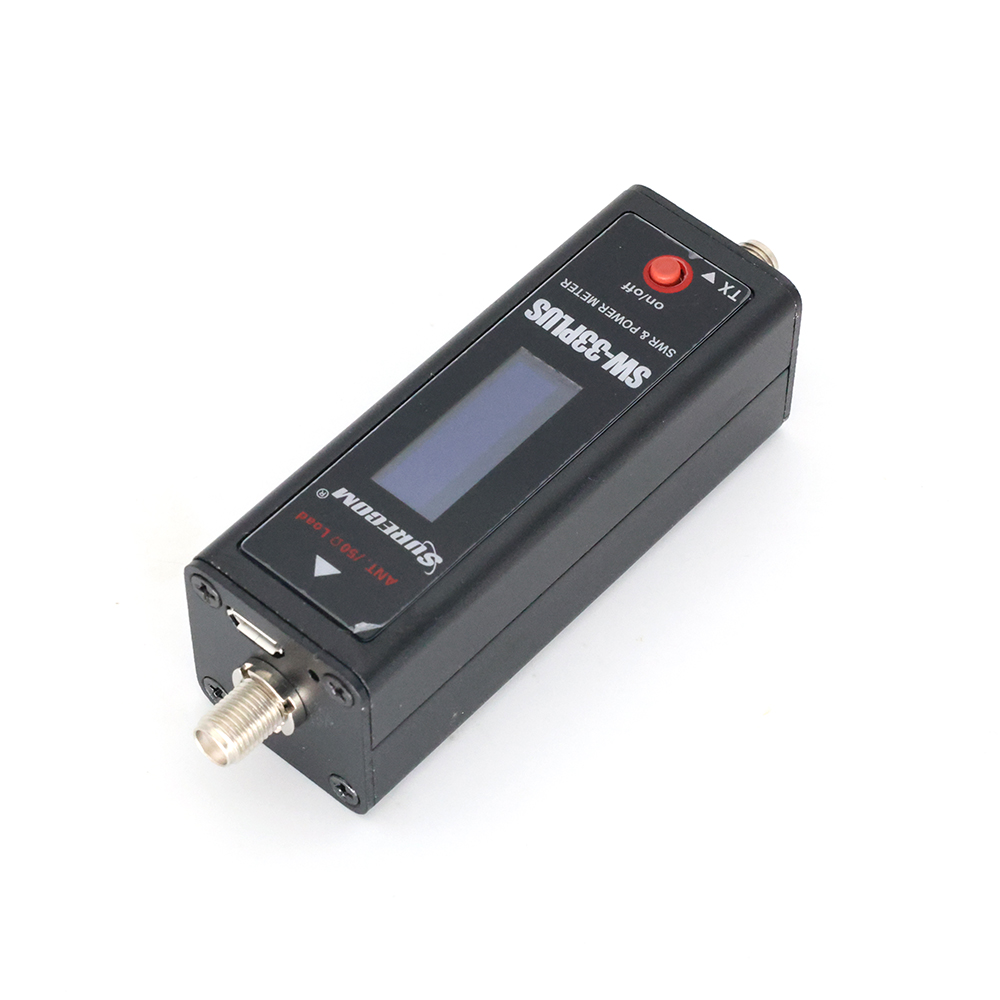

SURECOM SW-33Plus 125-525MHz VHF/UHF Dual Band Analog Walkie Talkie Mini Power&S.W.R Meter
SW-33Plus Analog Walkie Talkie Mini Power&S.W.R Meter VHF/UHF Dual Band 125-525MHz
Features:
1.A highly Visible LED meter Scale on a display Marks it quick and easy to read SWR,Forward or reflected Power
2.Maximum measurable power range up to 100w
3.Fast Check your antenna S.W.R and radio RF power Watt in 3 seconds
4.Easy to install handheld radio
5.Compact and light, Easy carrying
Key Specifications:
Measure power range: 0.1-100W
Maximum Power: 100W
Accuracy: mean +/-5%
Test Suitable antenna for walkie-talkie use
Measurement Radio RF Power output
All on LCD power FF/REV/S.W.R
*NOT for the DMR digital radios
Technical Specifications:
Max.Power:0.1-100W
V.S.W.R:1.00-19.9
SWR Detection Sensitivity:3W min
Frequency Range:125-525MHz
Power In:5V(Micro USB)
Li-ion Battery:3.7V 500mah
In/Out Impedance:50 ohm
Size without Socket:25*25*60mm
(IN AND OUT) Interface:SMA-Female
Net Weight:160g

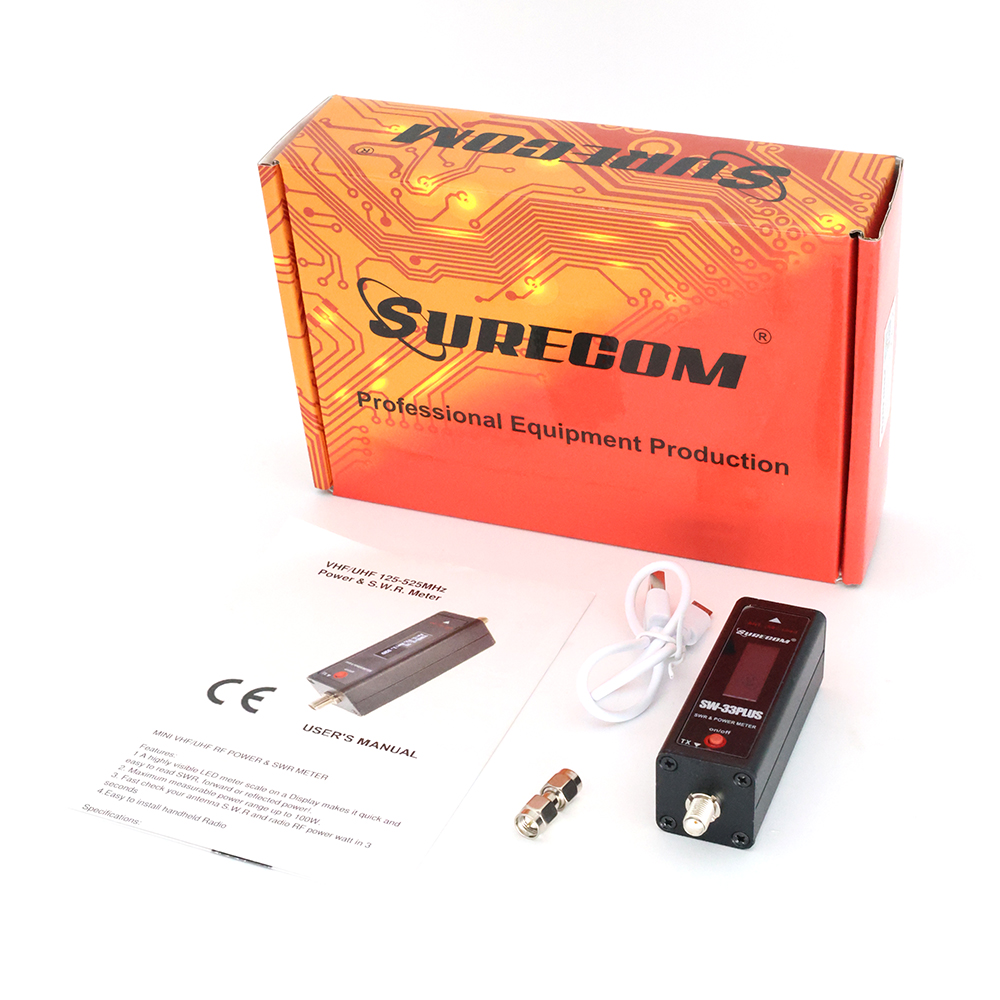

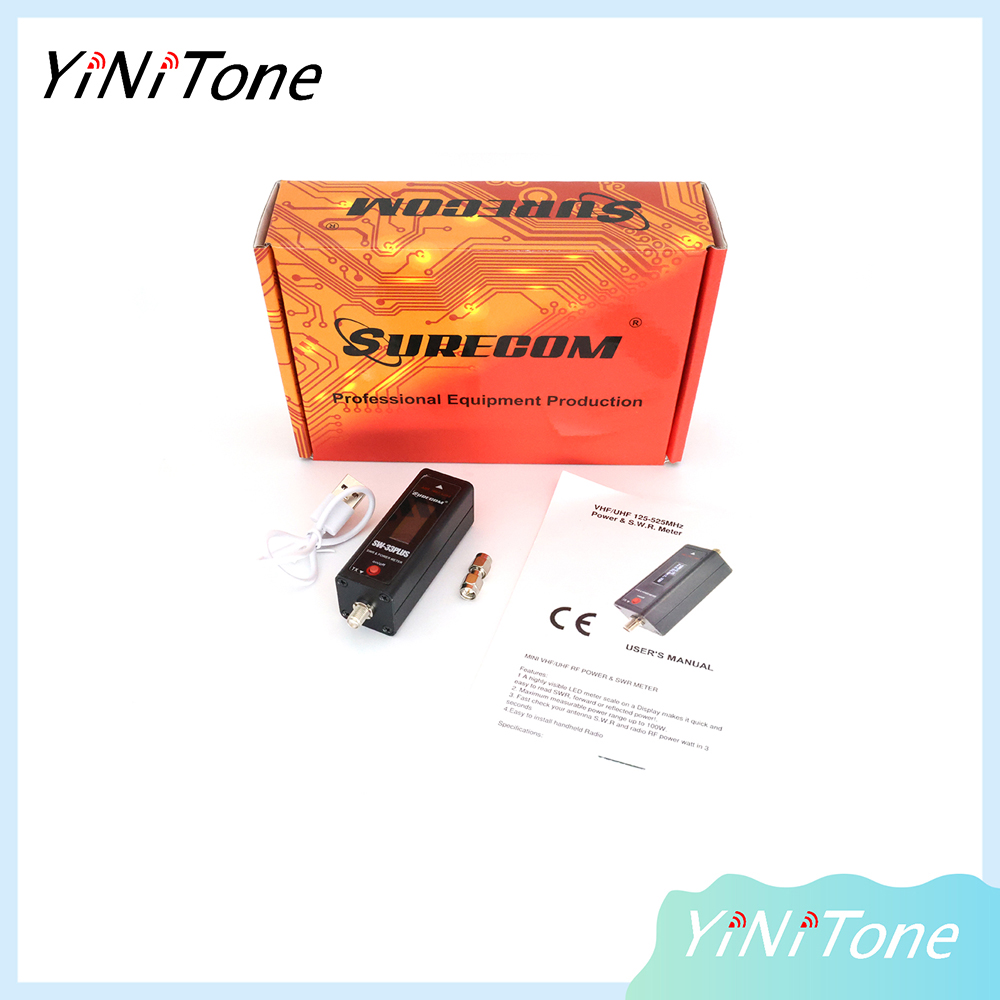

Package Contains:
Power & SWR meter*1
English Instructions*1
USB Charge Cable*1
