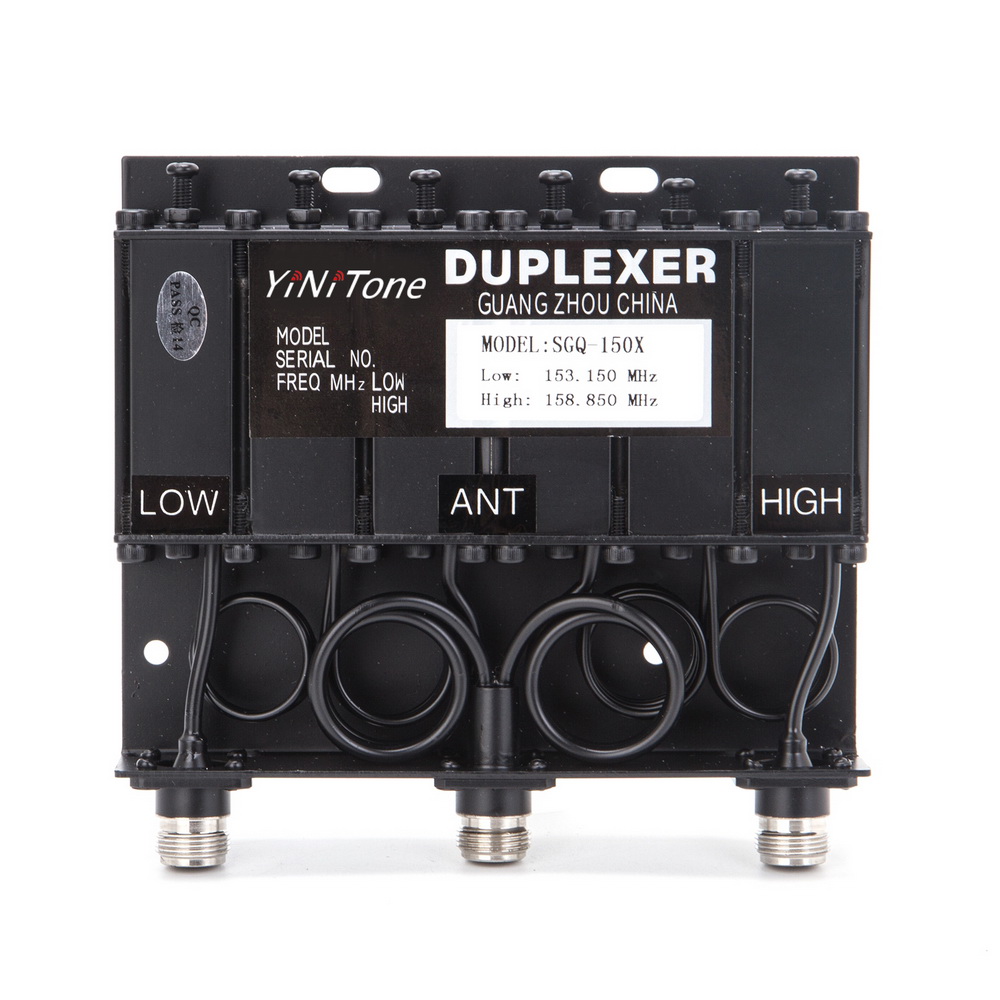

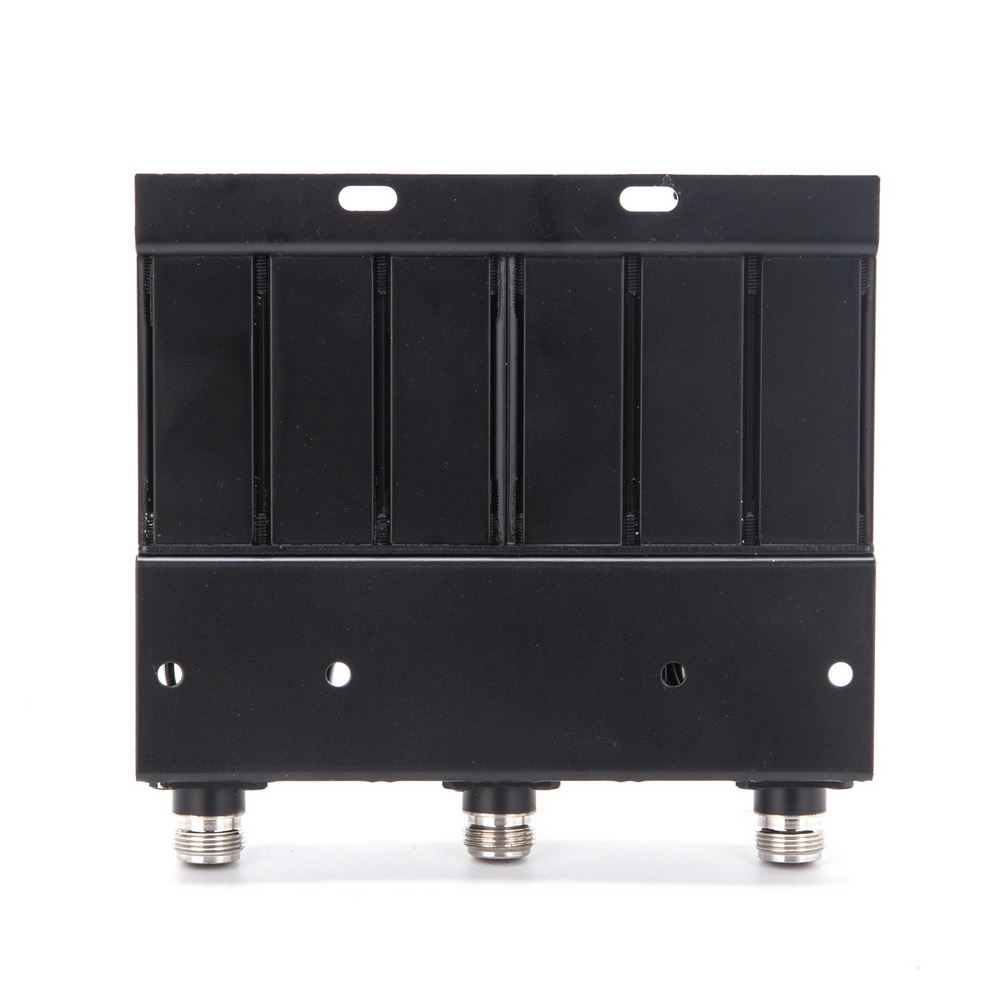

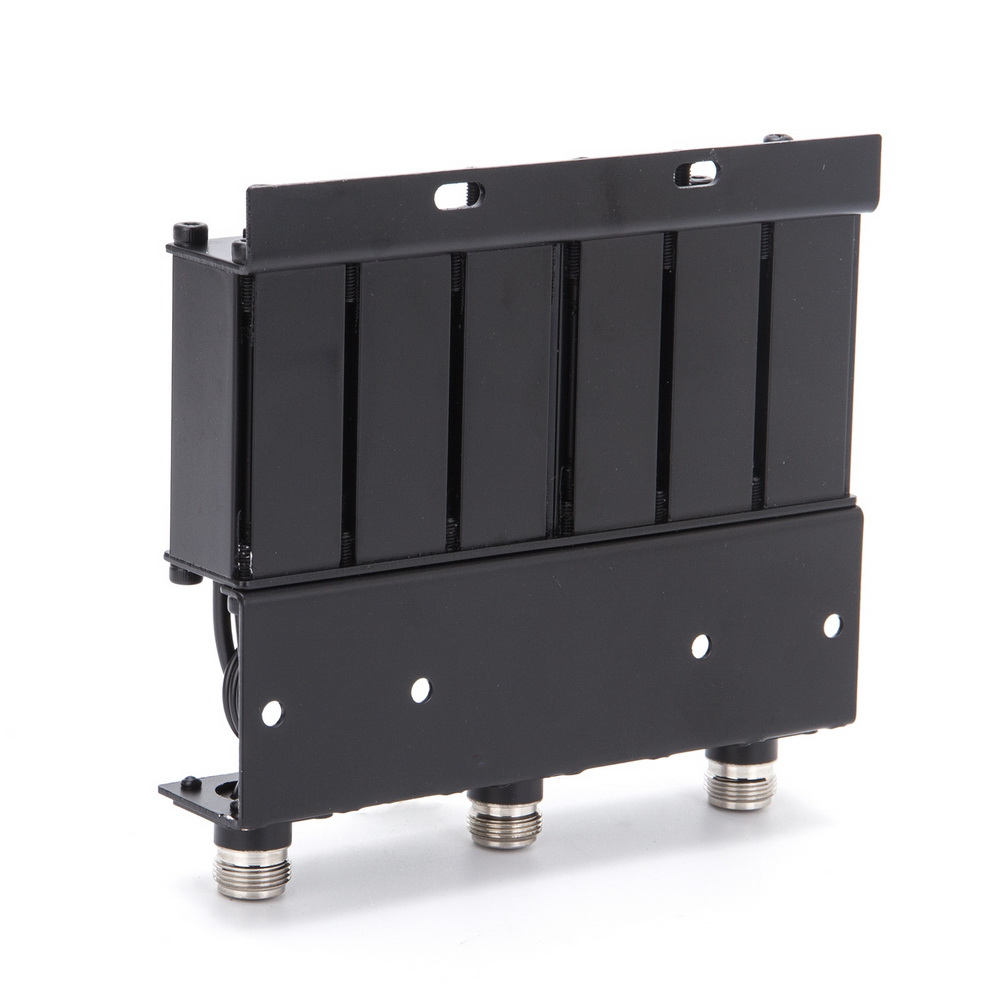

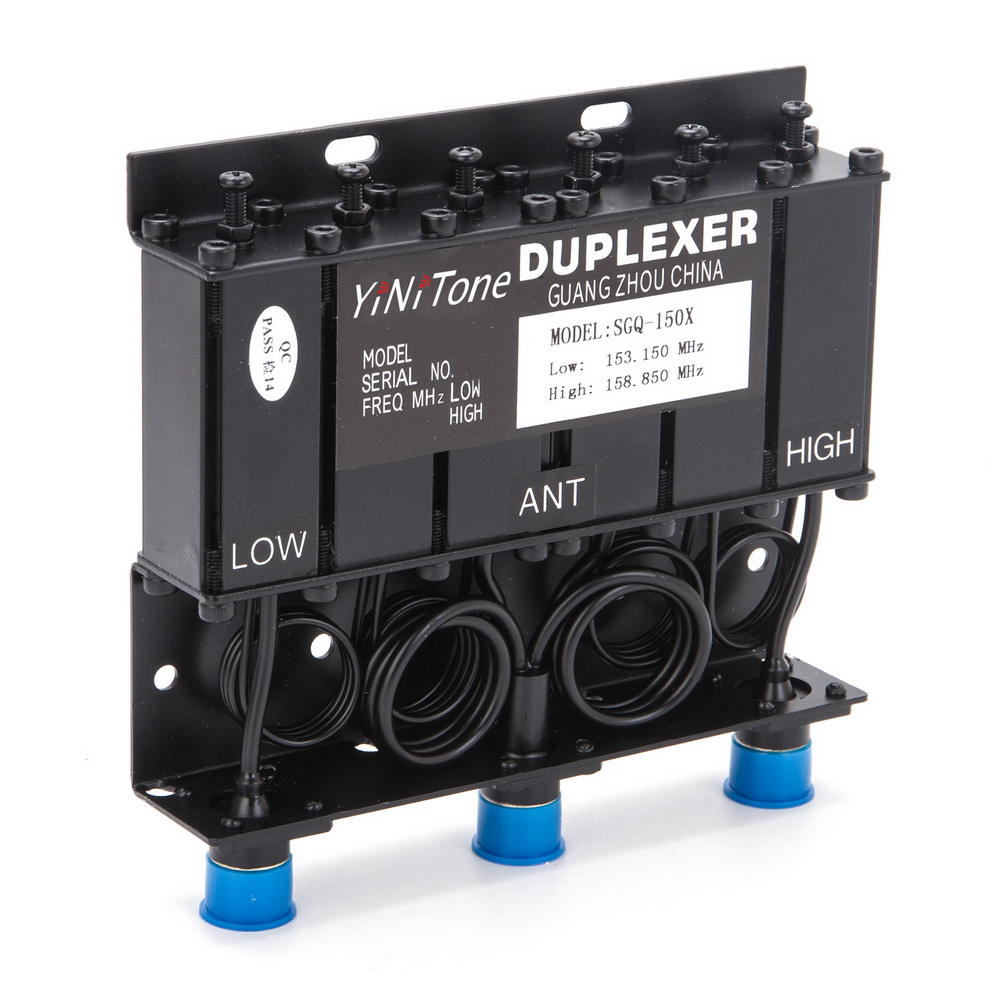

Model |
SGQ-150X |
|
Material |
Steel |
|
Color |
Black |
|
Product Size |
114×154×32 |
|
Product Weight |
915 |
|
Minimum Order Quantity |
1 |
|
Model |
SGQ-150X |
|
Material |
Steel |
|
Color |
Black |
|
Product Size |
114×154×32 |
|
Product Weight |
915 |
|
Minimum Order Quantity |
1 |
产品型号 Product Number | SGQ-150X |
频率范围Frequency Range(MHz) | 136-174MHz |
工作带宽 Bandwidth （KHz） | +100 |
收发间隔Frequency Spacing (MHz) | 5.7 |
插入损耗 Isolation Loss (dB) | <1.0dB |
驻波比 V.S.W.R | <1.3 |
隔离度 Isolation (dB) | >80 |
抑制度 Suppression (dB) | >80 |
阻 抗Impedance（Ω） | 50 |
功率容量 Max.power Input （W） | 3-15W(10W） |
接头形式 Standard Termination | N-Femele |
工作温度 Operating temperature | -25℃-+55℃ |
相对湿度 Operating Humidity | 5-95% |

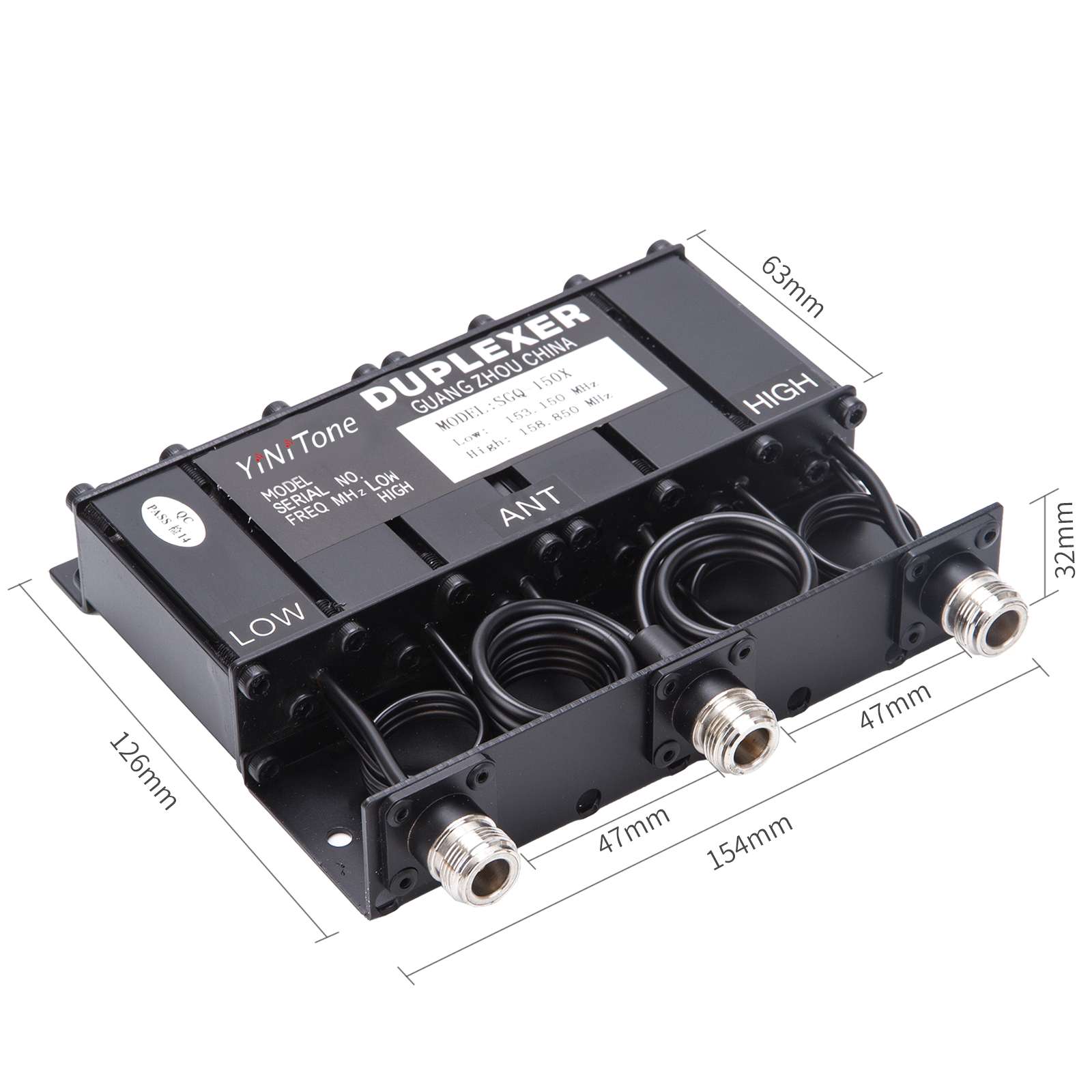

尺 寸 Dimensions （mm） | 114×154×32 |
重 量 Weight （kg） | 0.915 |

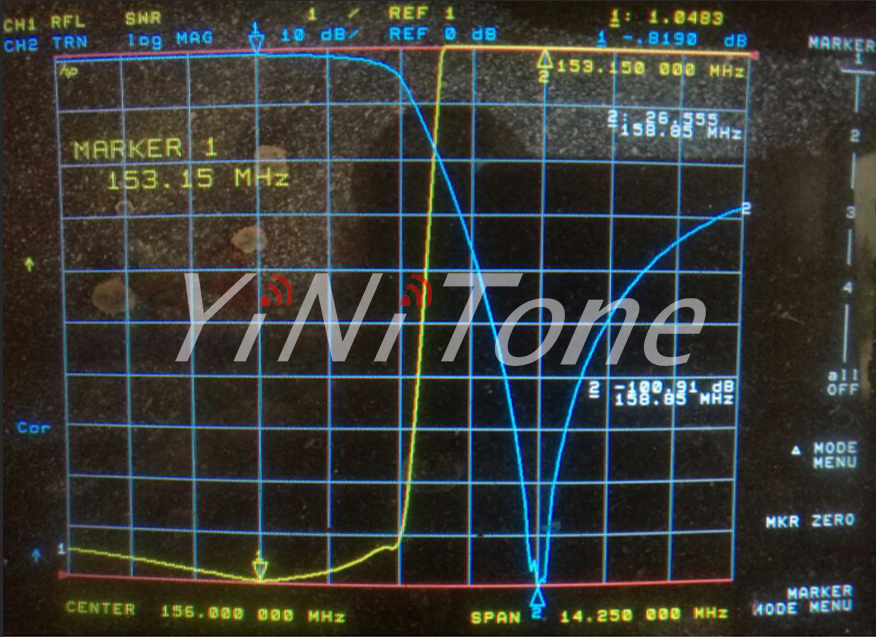

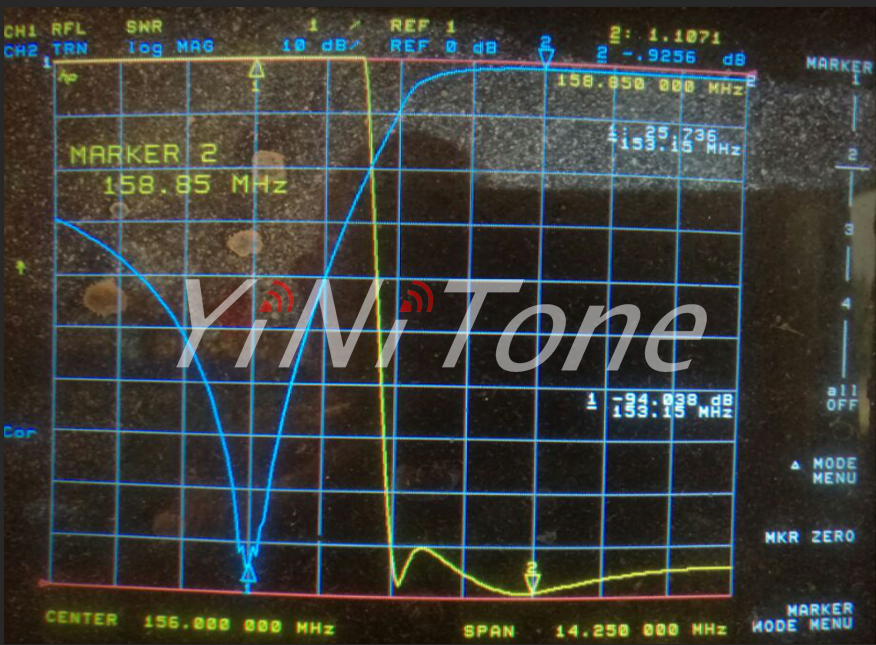

Insertion: loss 0.8190db;
Isolation :100.91db;
SWR: 1.0483
In addition, the standard frequency difference is 5.7mhz. The frequency range of frequency difference is 3.5mhz-20mhz (non-standard), and the frequency difference within this range can be produced. Customers are required to provide frequency point customization. At the same time, the actual parameters of the duplexer will change with the frequency difference of the duplexer.
Note：
1. when the frequency difference becomes smaller, the insertion loss will become larger and the isolation will become smaller. When the frequency difference becomes larger, the insertion loss will become smaller and the isolation will become larger (the better the performance)
2. the customer customized the frequency, and after receiving the goods, (key, many customer complaints are caused by this reason)
If the customer needs to debug himself, the frequency difference of the duplexer cannot be changed (this is the key), and the frequency can only be shifted by about ± 3~5mhz
