Model |
SGQ-150K |
|
Material |
Steel |
|
Color |
Black |
|
Packing Size |
31*27*9 |
|
Product Weight |
1940g |
|
Including Packing Weight |
2100g |
|
LOGO Custom |
Yes |
|
Minimum Order Quantity |
1 |

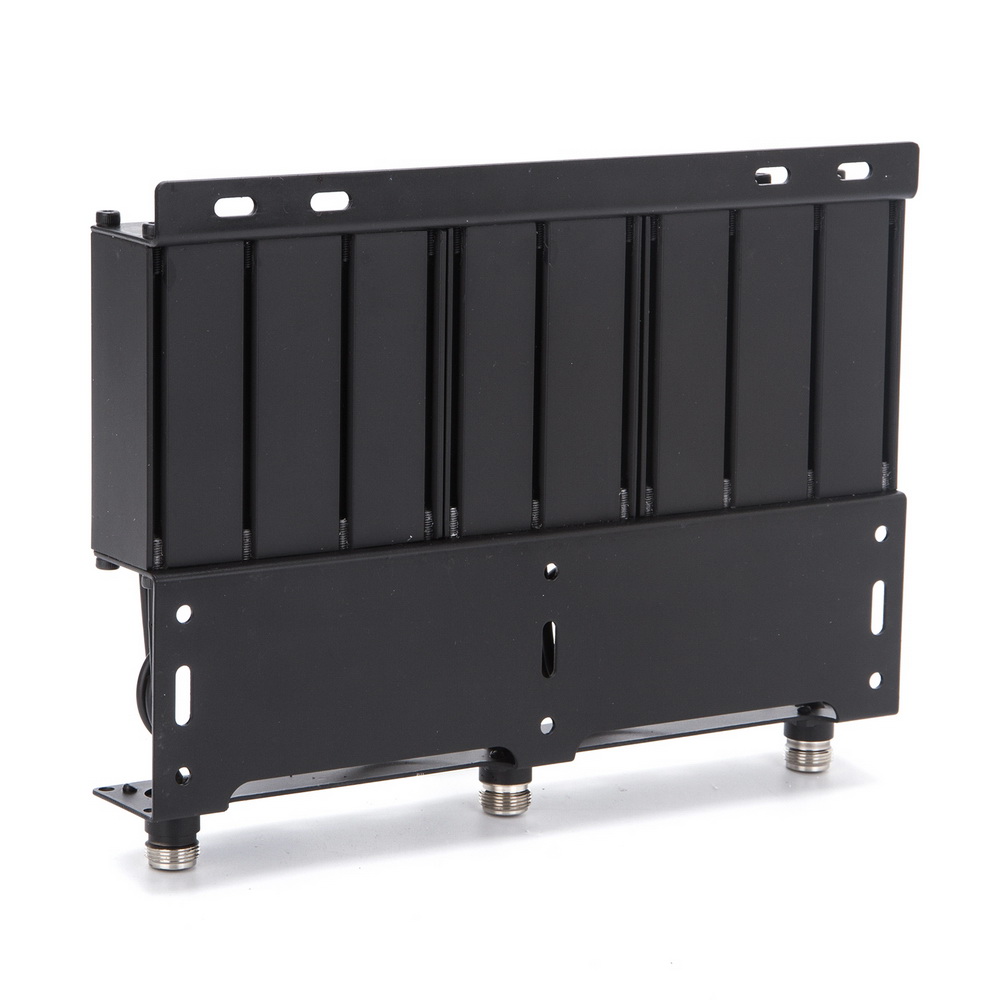

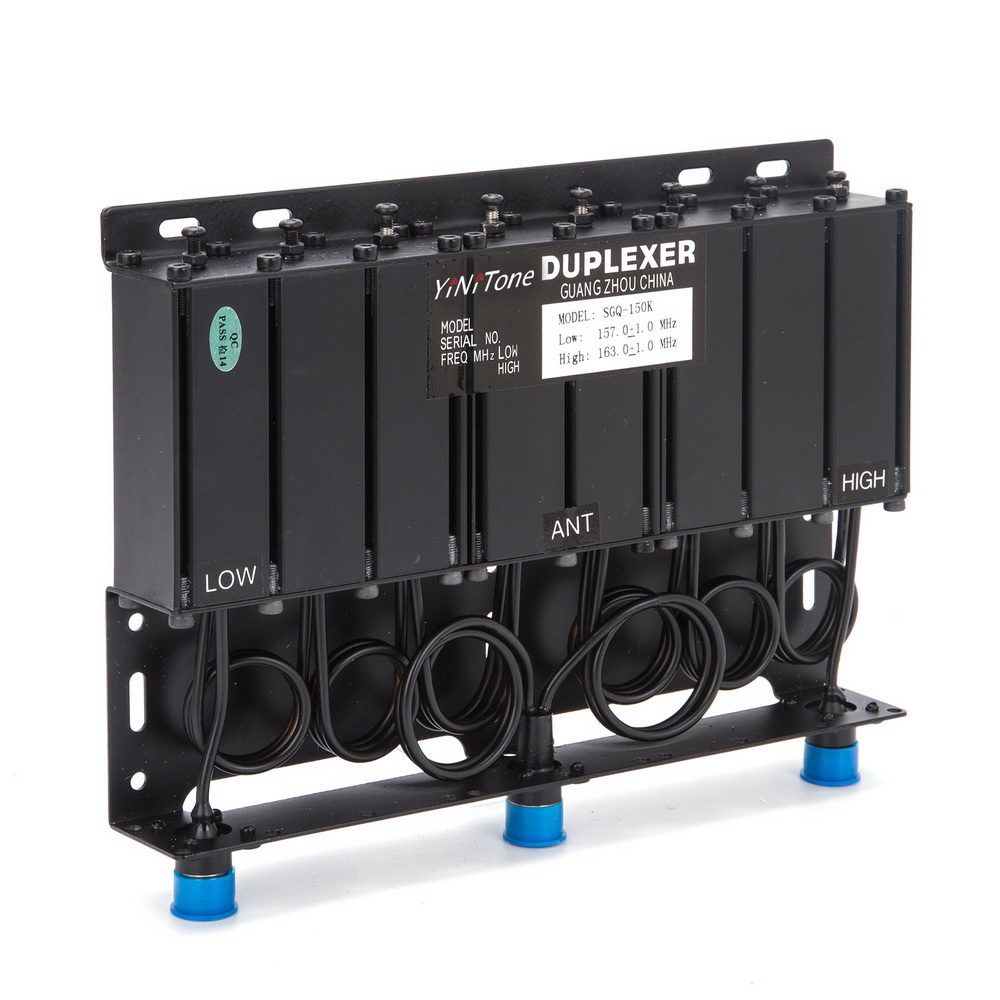

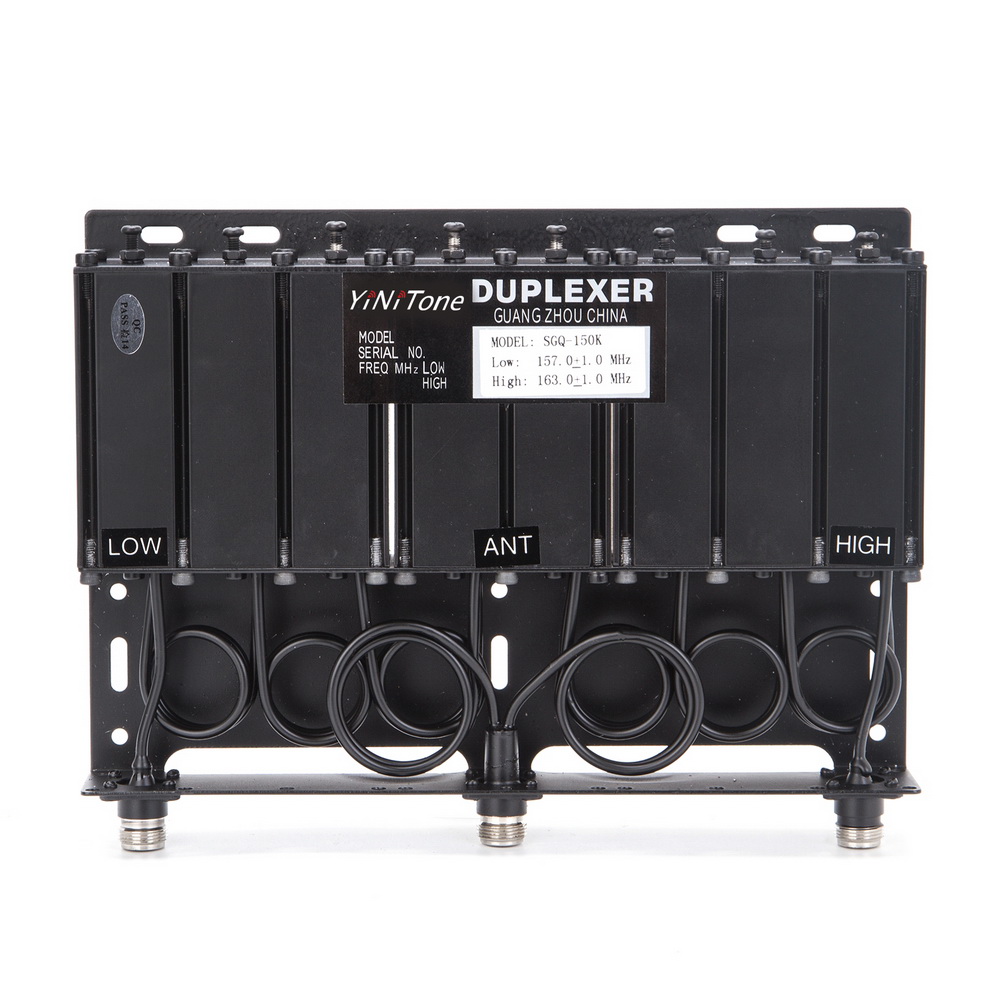

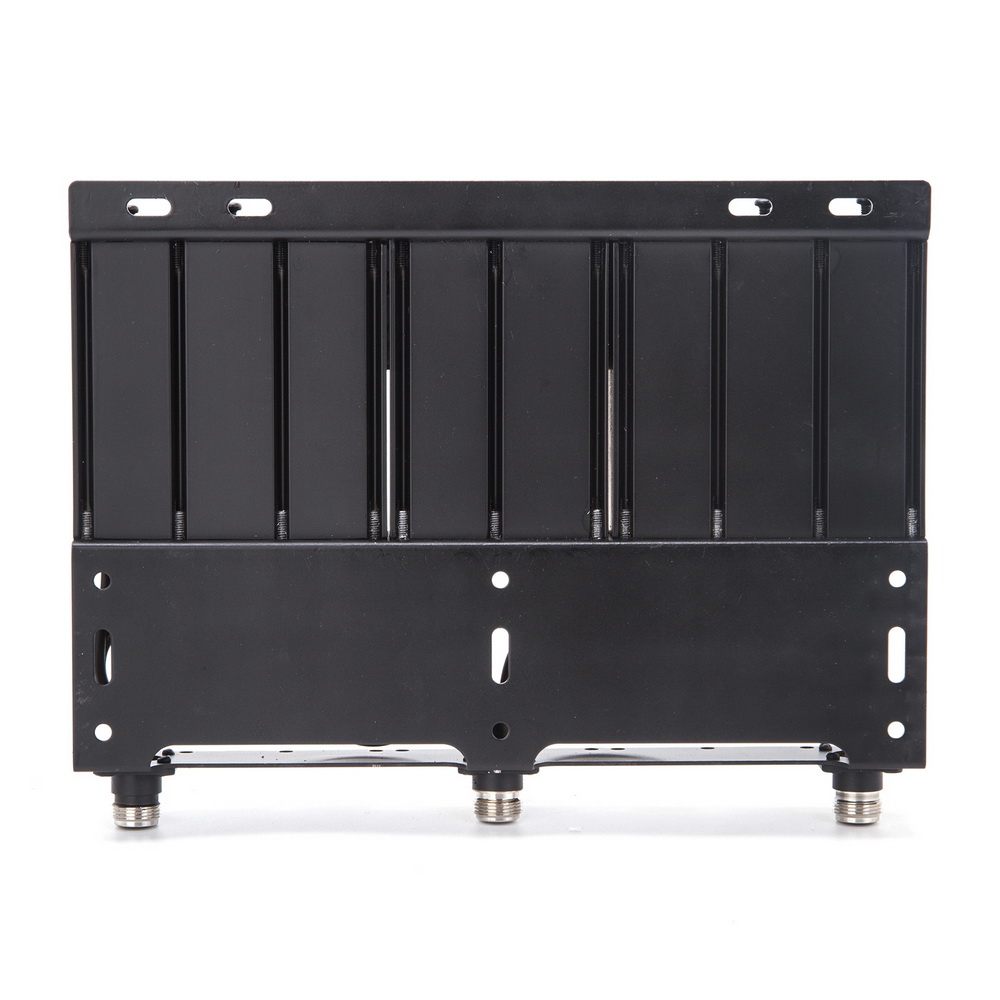

SGQ-150K 100W VHF136-174MHz customizable frequency Portable Duplexer
note：
Be sure to note the required frequency point, otherwise the default TX：157.0±1.0MHz/RX：163.0±1.0MHz
Specification:
Product Number：SGQ-150K
Frequency Range：VHF136-174MHz
Bandwidth：±1.0MHz
Frequency Spacing：6.0MHz
Isolation Loss：≤1.0dB
V.S.W.R：≤1.5
Isolation：≥80dB
Suppression：≥80dB
Impedance：50Ω
Max.power Input：80-150W(100W）
Standard Termination：N-Female
Operating temperature：-25℃-+55℃
Operating Humidity：5-95%

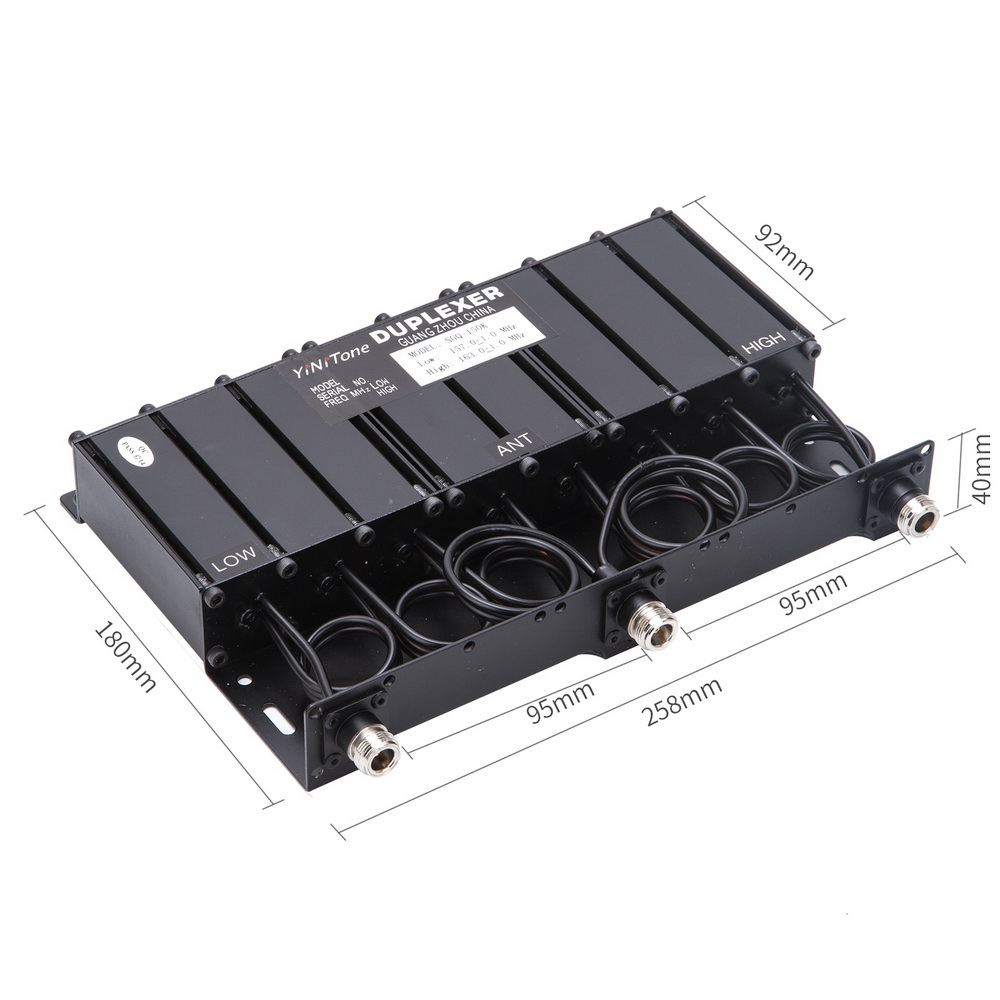

Dimensions：225×154×40mm
Weight：2.1kg
Package Including:
1*Portable Duplexer
